SCB14 Series

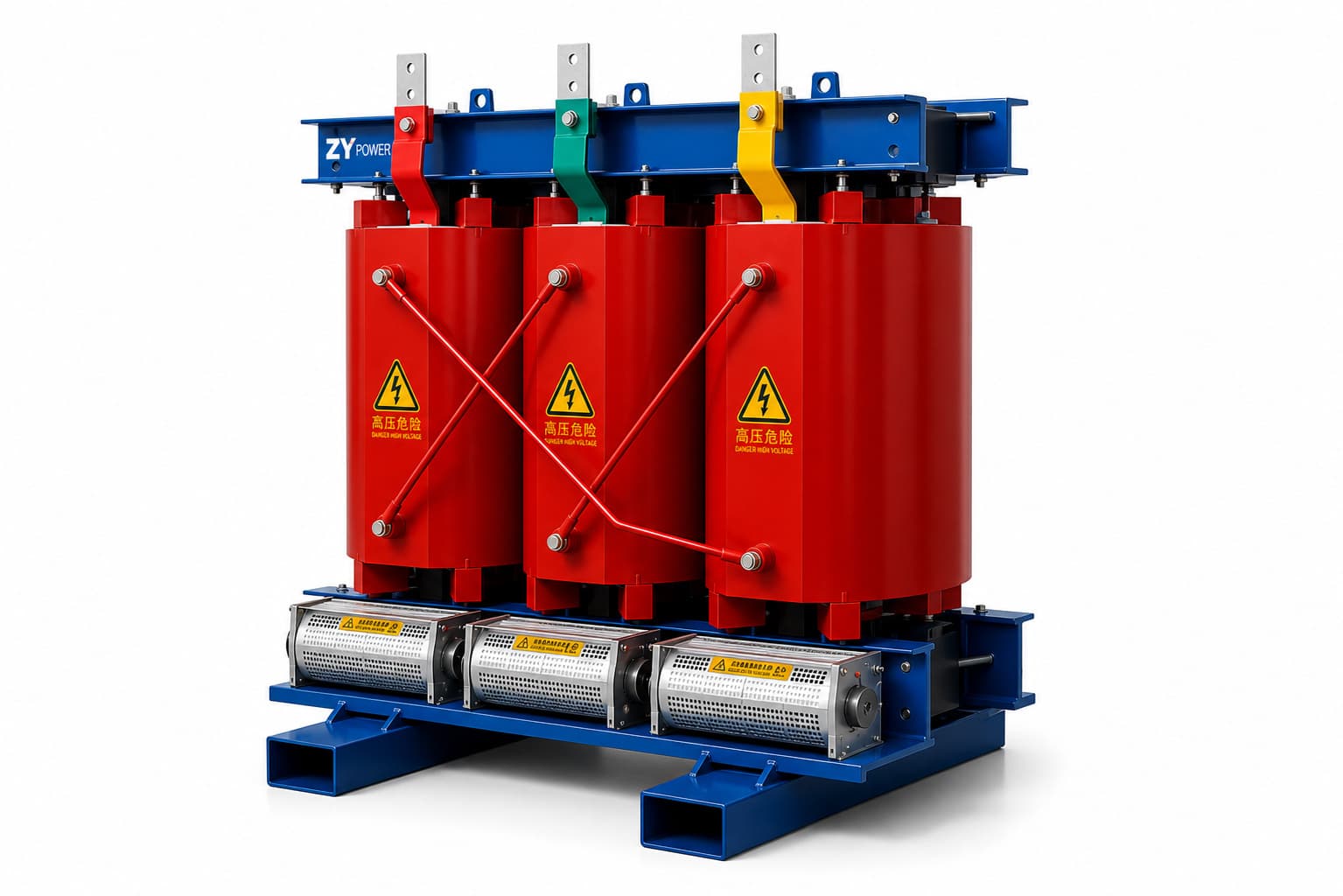

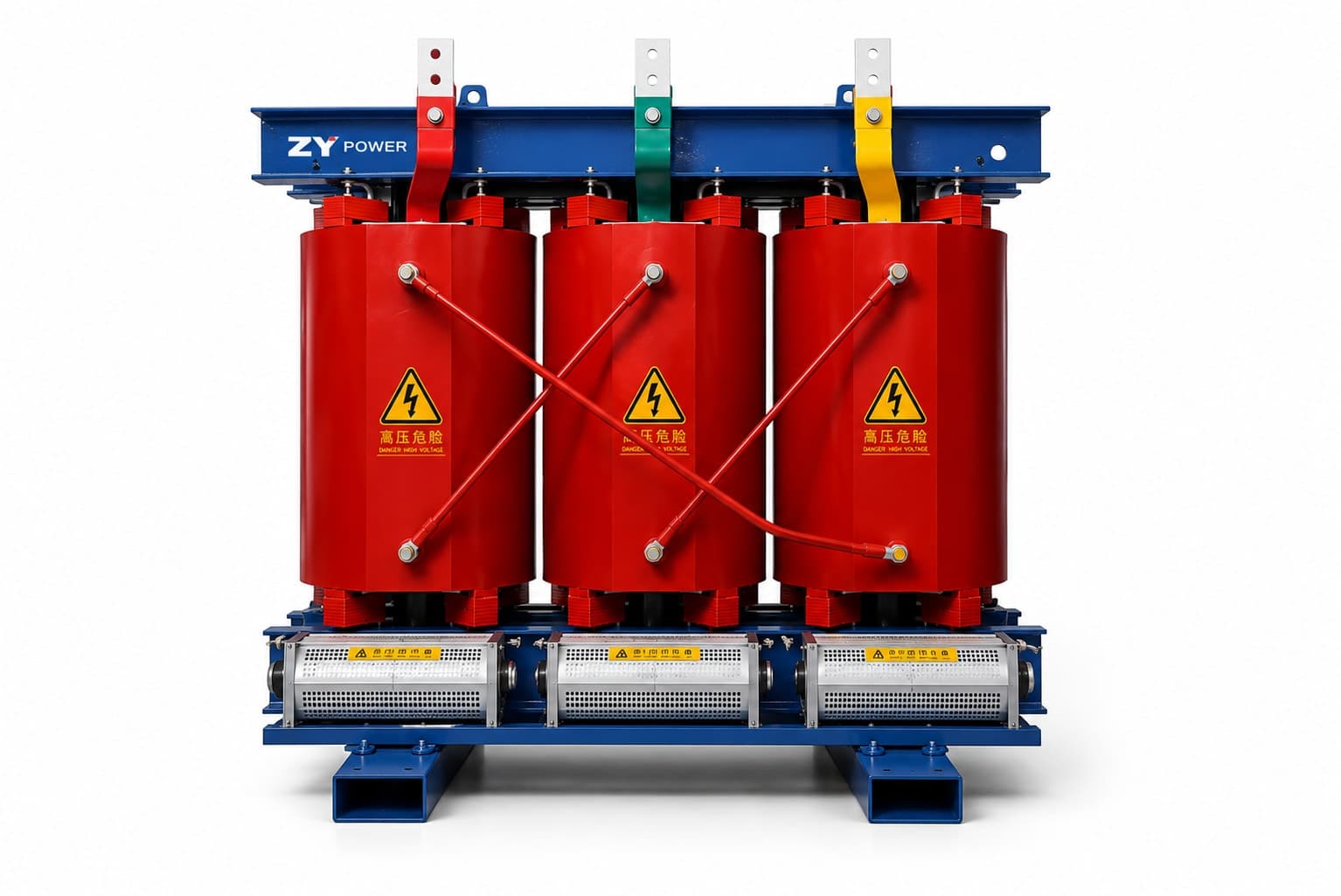

SCB14 High-Efficiency Dry-Type Transformer
Why choose ZY POWER for this project
Low-Loss Dry Transformer
Cast-resin insulation with loss level selected for the project load profile.

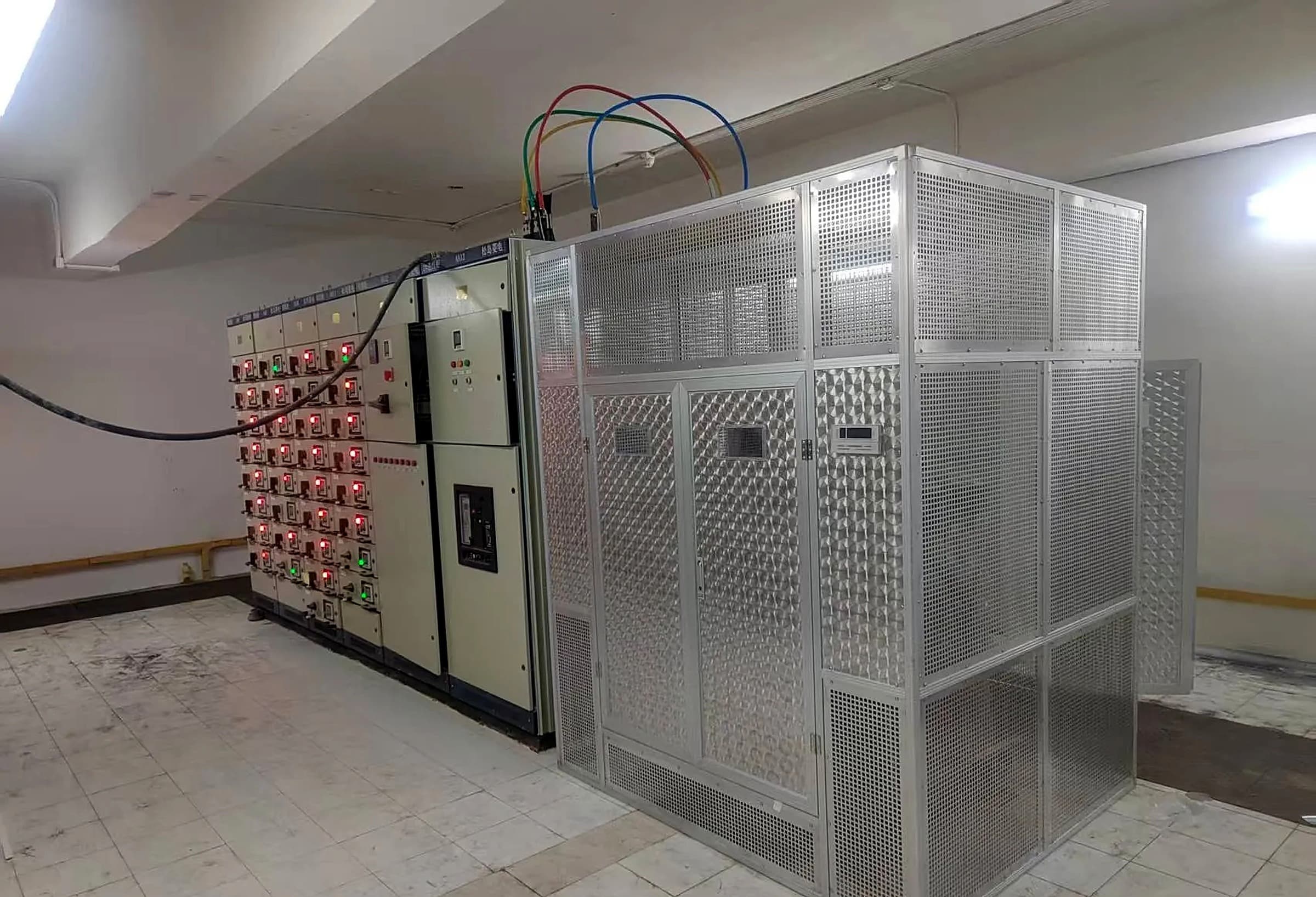

Indoor Power Room Fit
Compact, clean installation for buildings, factories, hospitals, and utility rooms.
Thermal Safety Margin
Temperature rise, insulation class, and ventilation layout are confirmed before quotation.
Export Documentation
Datasheet, routine test records, and drawings can be prepared for project approval.
SCB14 series dry-type transformer for industrial buildings, commercial facilities, data centers, hospitals, and indoor substations. Detailed project ratings and engineering parameters are configured after project review.
- Rated Voltage
- 10-35 kV / 0.4 kV project configuration
- Rated Capacity
- 30-2500 kVA typical range
- Frequency
- 50Hz / 60Hz
- Standard
- IEC 60076, IEC 60076-11
- Application
- Indoor distribution rooms, commercial buildings, industrial plants
- Protection Level

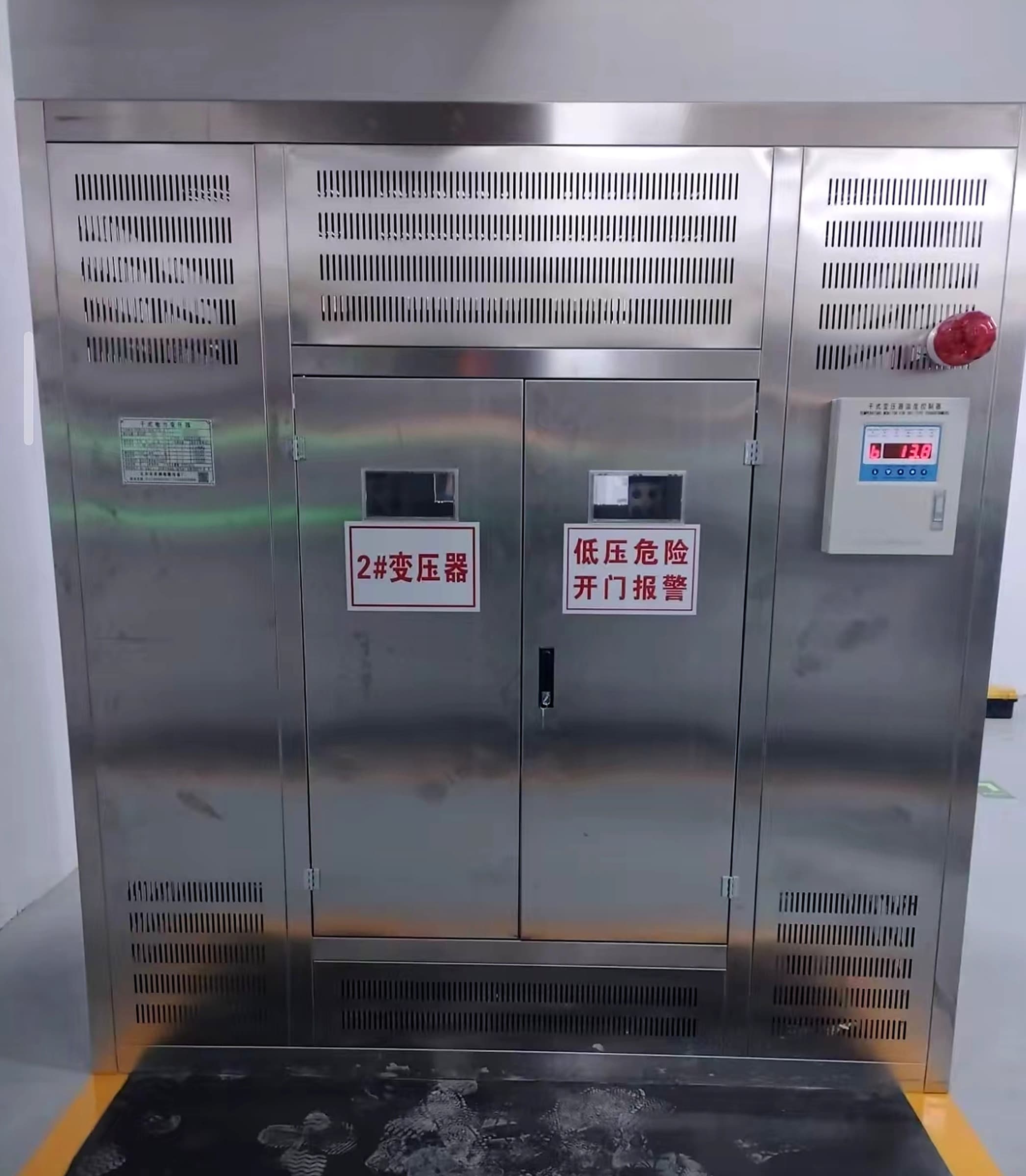

- IP00 / IP20 / IP23 enclosure optional
- Installation Type
- Indoor floor-mounted installation
Factory and delivery evidence
Evidence buyers can verify
Review the published factory media now. Order-specific drawings, test records, packing photos, and certificates are supplied only for the confirmed project scope.
Testing information
Published site mediaRoutine test scope is confirmed against the applicable standard and approved specification.
- Routine test record by serial number
- FAT scope agreed before inspection
Evidence source: Published site media
Packing and shipment
Published site mediaExport preparation is coordinated after dimensions, route, and delivery terms are confirmed.
- Packing method matched to transport conditions
- Loading record can be retained for the order
Evidence source: Published site media
Project document package
Project scope requiredDocuments are issued for the confirmed order instead of reused as generic proof.
- Approved datasheet and drawings
- Test record, packing list, and nameplate data
Evidence source: Project scope required
Images show published manufacturing, testing, and loading scenes. Final product appearance and project documents depend on the approved technical configuration.
Request evidence packageSCB14 series dry-type transformer for industrial buildings, commercial facilities, data centers, hospitals, and indoor substations. Detailed project ratings and engineering parameters are configured after project review.
