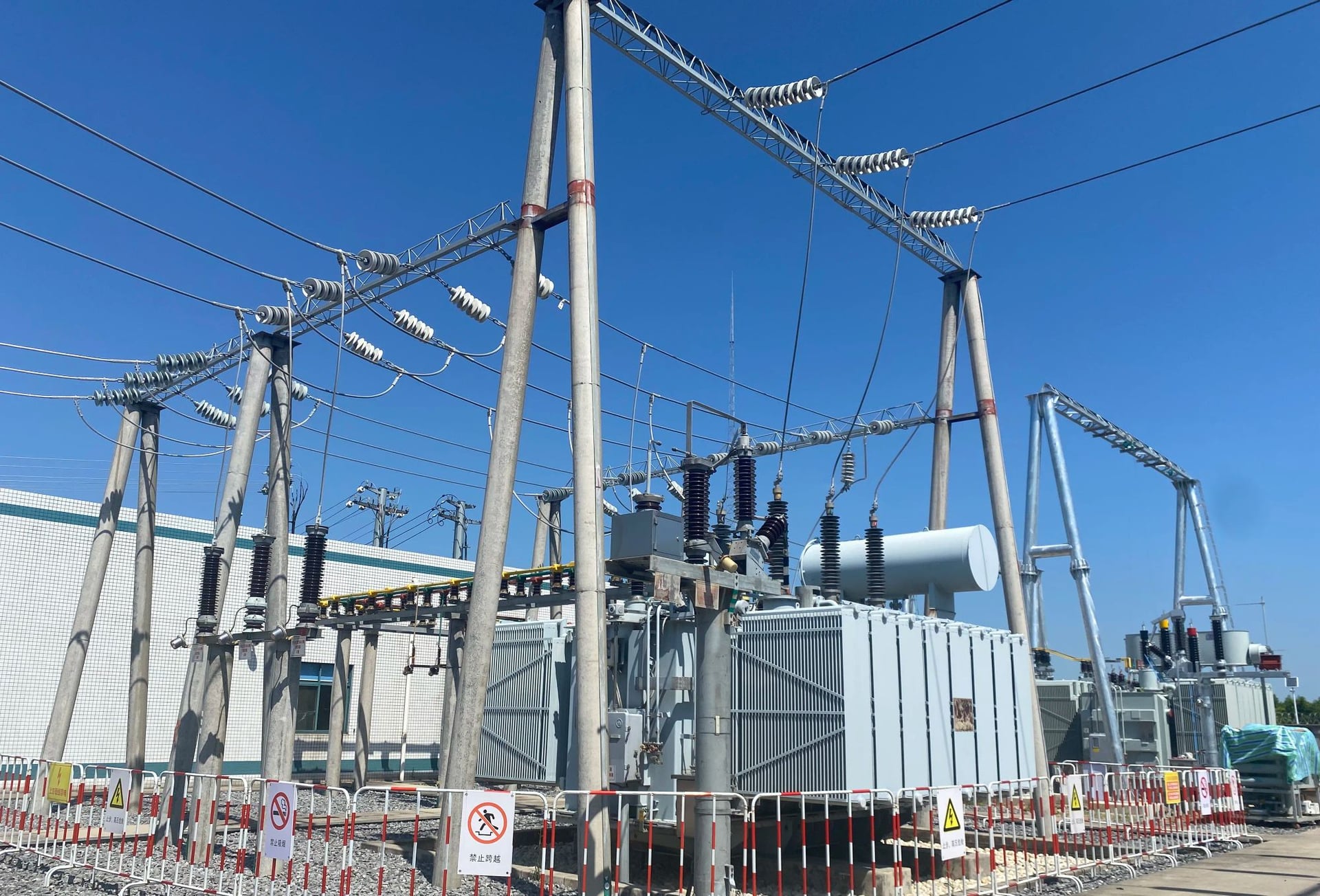

Solar Power Distribution
Step-up transformers, medium-voltage switchgear, and substation packages for PV plants.
View solution

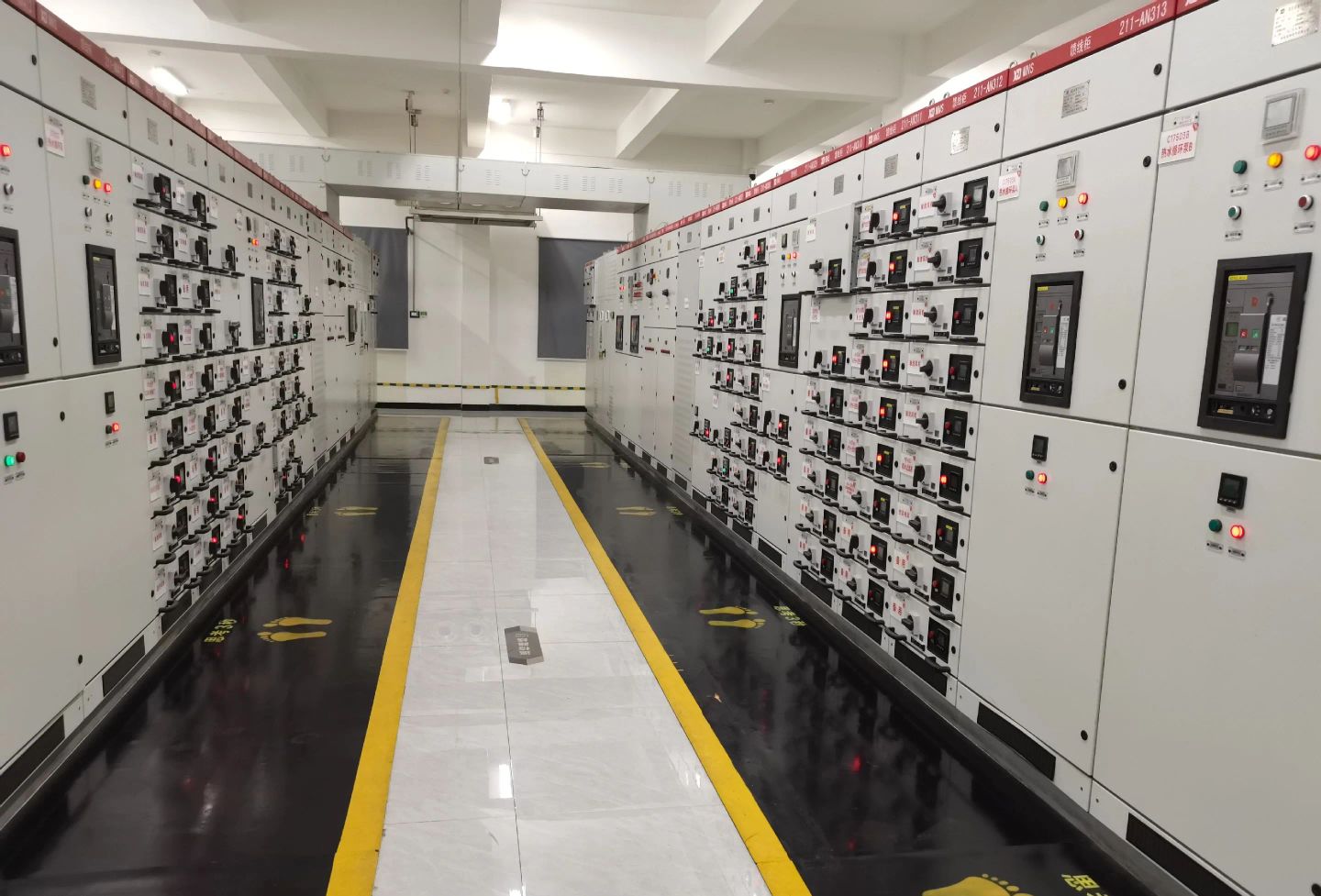

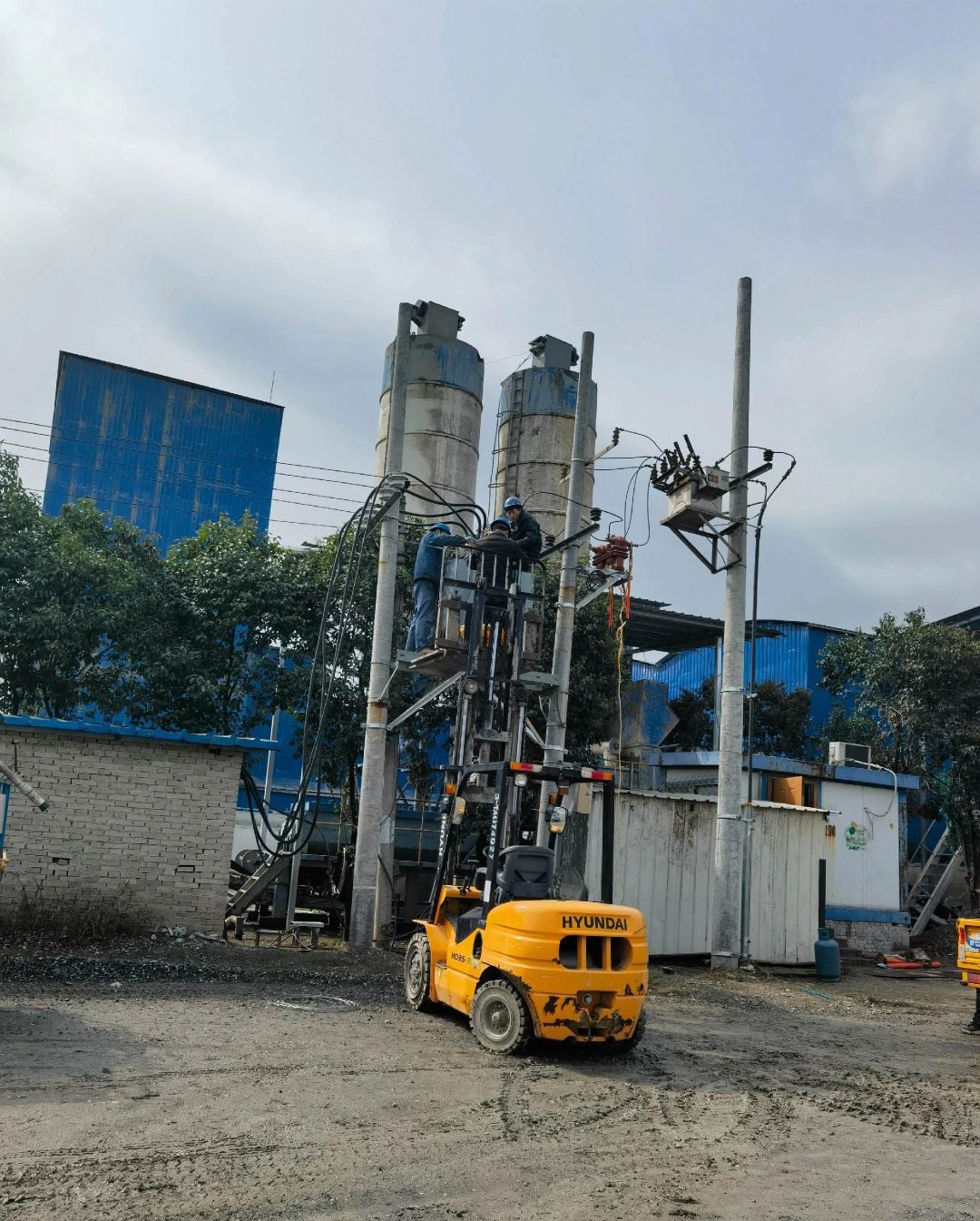

Industrial Power Distribution
Transformer, switchgear, and low-voltage distribution equipment for manufacturing sites.
View solution

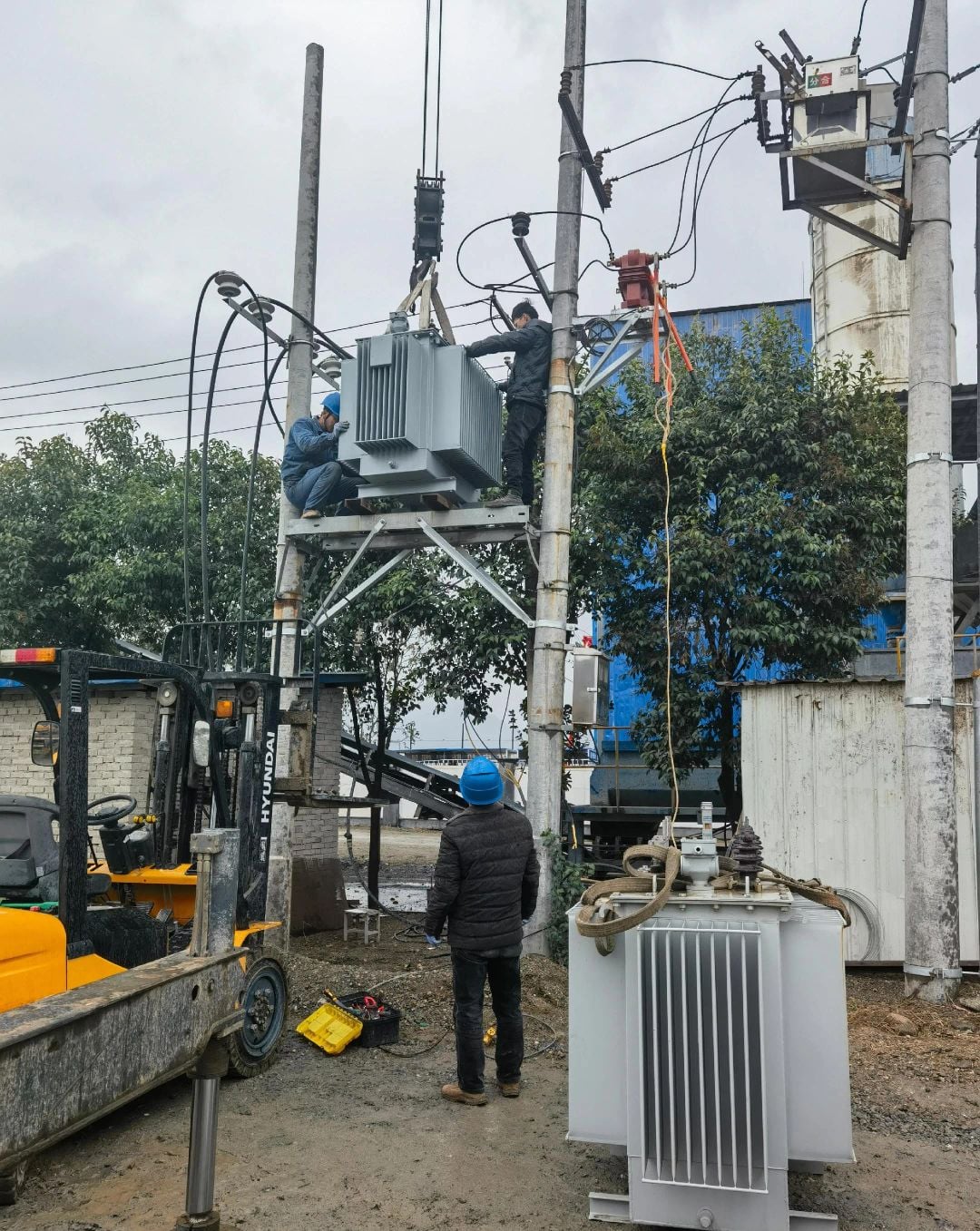

Mining Power Distribution
Rugged transformers, substations, and switching equipment for harsh operating environments.
View solution
Data Center Power
Dry-type transformers and switchgear configurations for continuous power infrastructure.
View solutionSystem definition
Build a power distribution package from project inputs
A solution page groups common equipment by application, but the final package must come from the network, load and operating philosophy. The engineering sequence below helps prevent transformer, switchgear and protection selections from being made in isolation. The first review should also identify interfaces owned by the EPC contractor, utility and end user.
Define the duty
Start with source voltage, frequency, fault level, load schedule, starting currents, harmonic loads, future growth and the acceptable interruption for each load group.
Coordinate the architecture
Map normal, maintenance and fault paths. Then coordinate transformer rating and impedance with MV switchgear, LV boards, protection, metering, cables, auxiliary power and control interfaces.
Close evidence and delivery
Agree drawings, guaranteed values, routine or special tests, FAT witness points, packing, transport dimensions, spare parts and final documentation before releasing equipment for manufacture.
Minimum inputs for a solution quotation
- Single-line diagram and load schedule with operating scenarios
- System voltage, fault level, earthing and protection philosophy
- Site environment, installation layout and cable interfaces
- Standards, document register, inspection scope and delivery date
