SCB13 Series

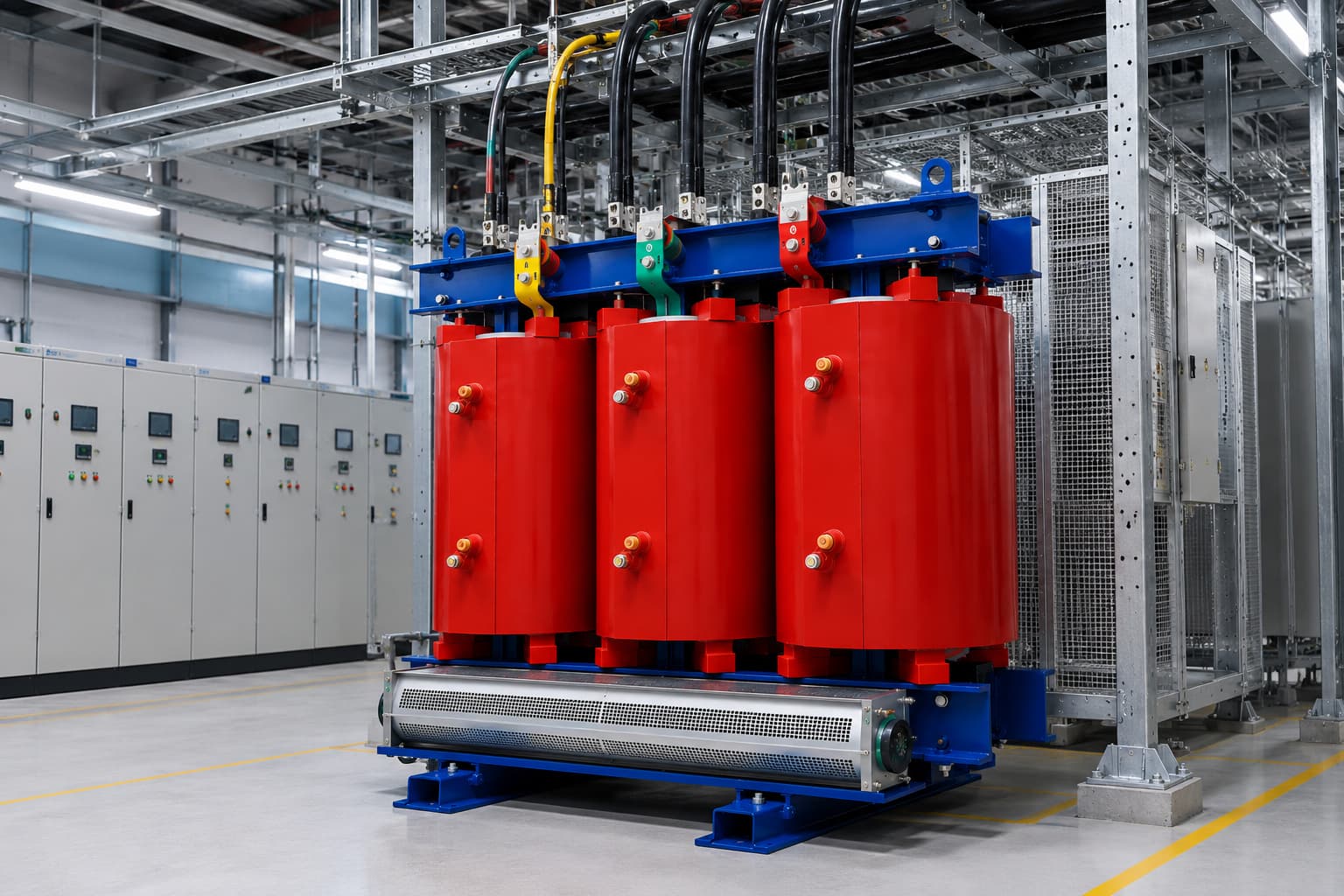

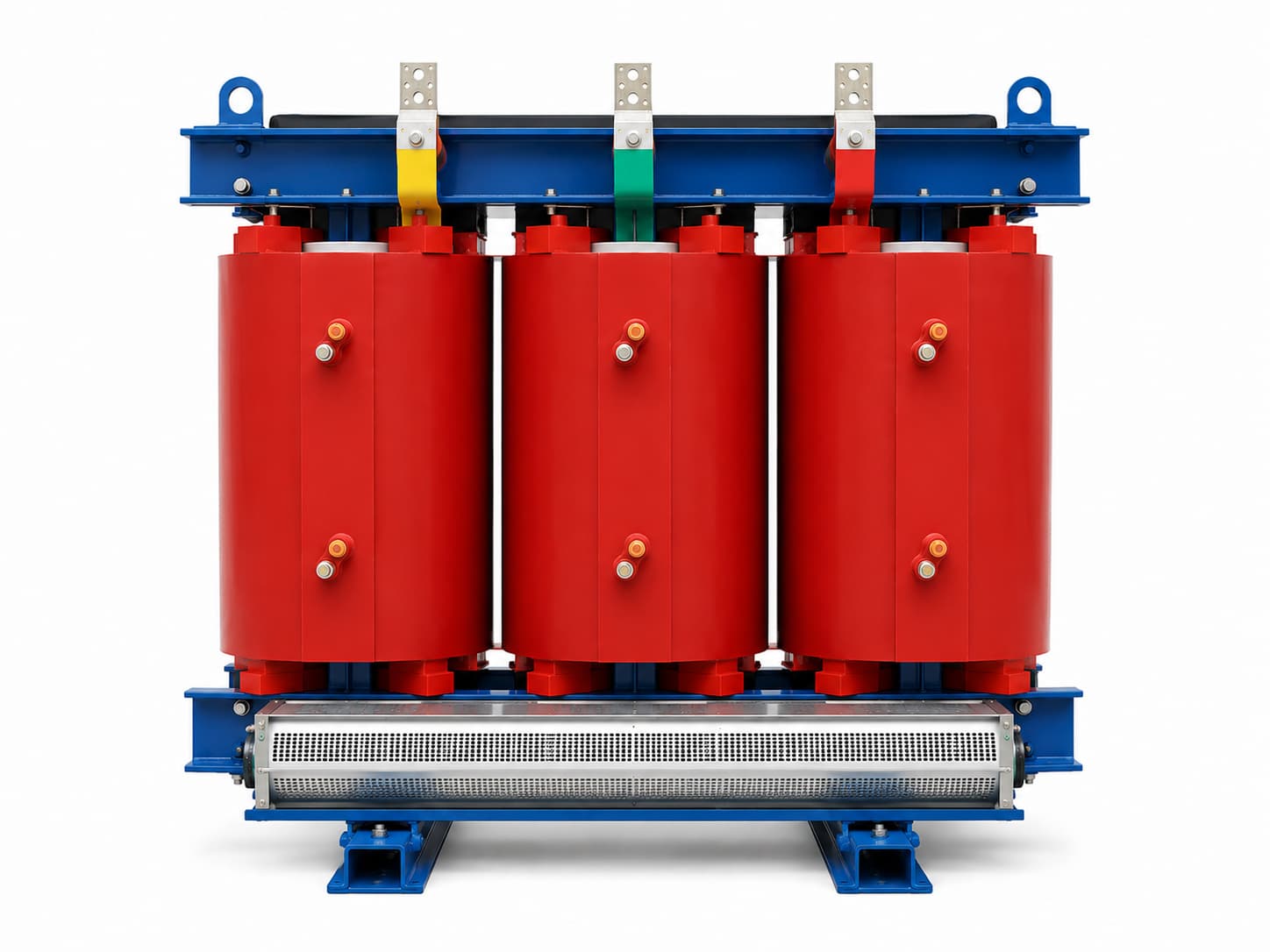

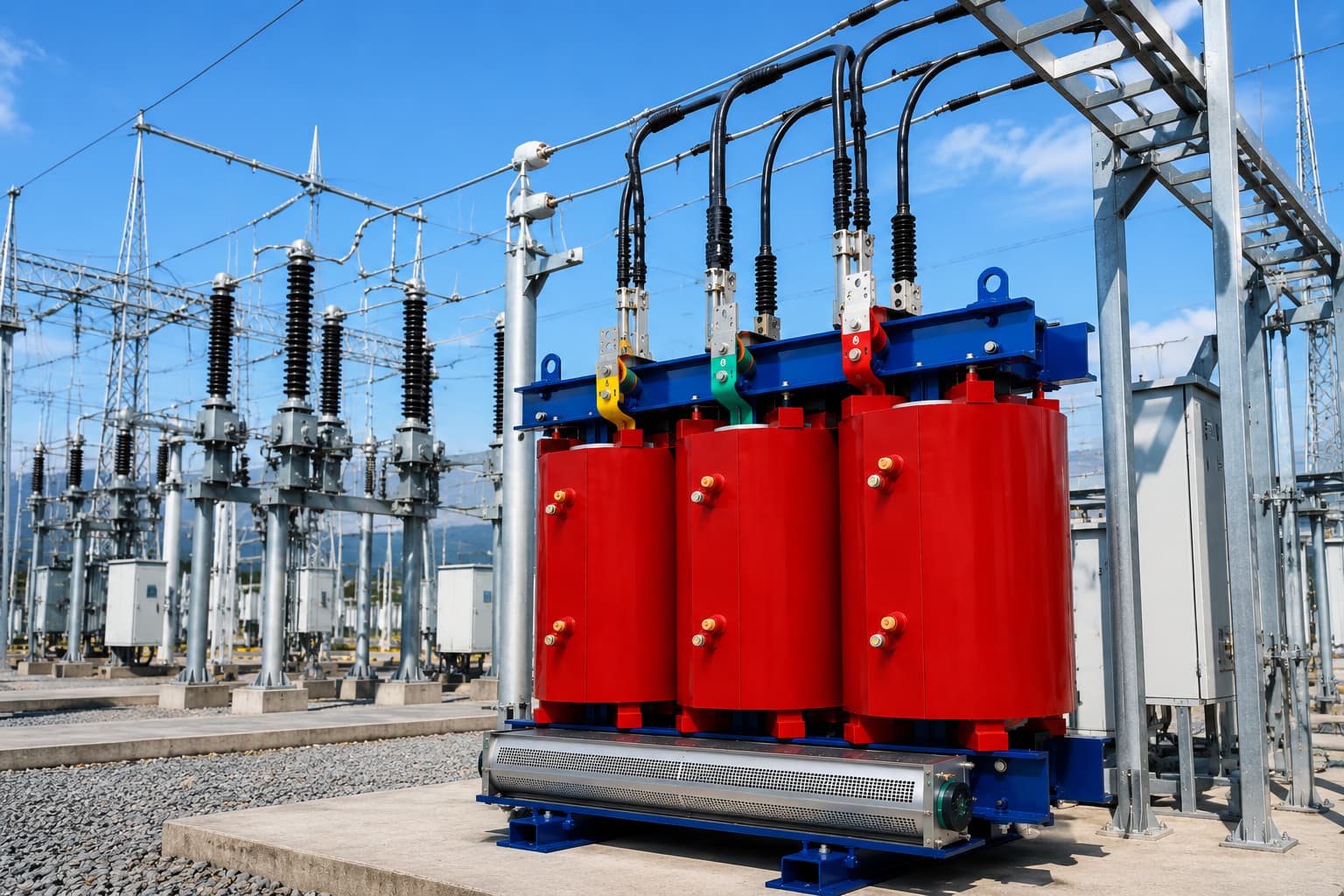

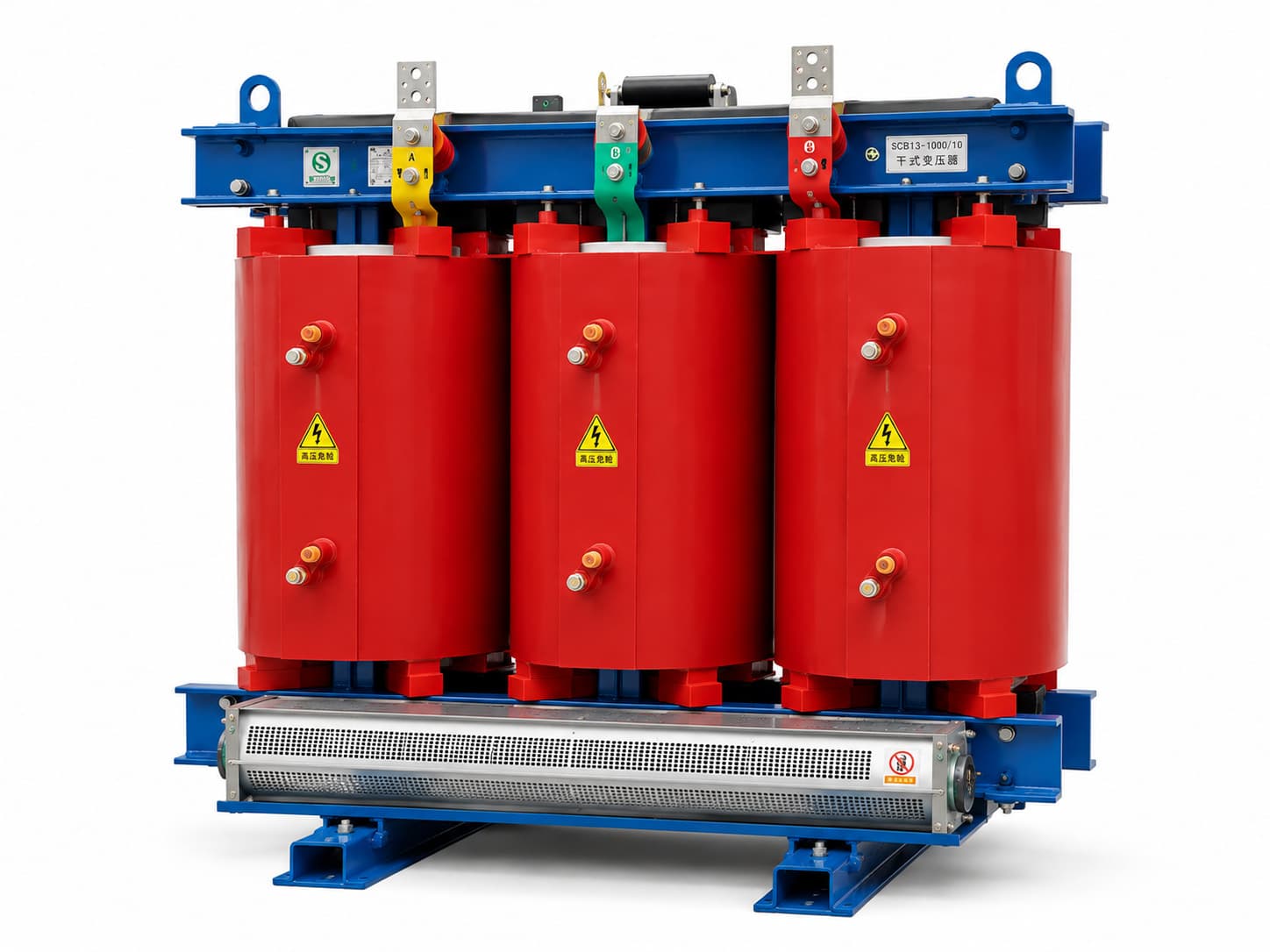

SCB13 Dry-Type Cast Resin Transformer
Why choose ZY POWER for this project
Cast-resin insulation for indoor projects
The epoxy cast-resin winding structure is suitable for power rooms where fire safety, low maintenance and no oil leakage are important to the project owner.
Low-loss core for distribution duty
SCB13 is usually selected as a mature low-loss dry-type transformer option for commercial buildings, factories, data centers and renewable-energy auxiliary systems.
Thermal protection and enclosure options
Temperature controller, cooling fans, enclosure protection and alarm contacts can be configured according to room ventilation and monitoring requirements.
Export-ready engineering documents
Outline drawings, nameplate data, routine test reports and packing records can be prepared for EPC submittals and overseas project files.
SCB13 series epoxy resin cast dry-type power transformer, rated 500 kVA, primary voltage 10 kV, secondary voltage 0.4kV. Features low loss, low noise and high overload capacity. Compliant with IEC 60076-11 standards. Ideal for commercial buildings, data centers, hospitals, and urban substations where fire safety is critical.
- Rated Voltage
- 10-35 kV / 0.4 kV project configuration
- Rated Capacity
- 30-2500 kVA typical range
- Frequency
- 50Hz / 60Hz
- Standard
- IEC 60076 transformer standard family
- Application
- Commercial Buildings, Industrial Plants, Data Centers, Solar, Infrastructure
- Protection Level
- IP00 / IP20 / IP23 enclosure optional
- Installation Type
- Indoor floor-mounted installation
Factory and delivery evidence
Evidence buyers can verify
Review the published factory media now. Order-specific drawings, test records, packing photos, and certificates are supplied only for the confirmed project scope.
Testing information
Published site mediaRoutine test scope is confirmed against the applicable standard and approved specification.
- Routine test record by serial number
- FAT scope agreed before inspection
Evidence source: Published site media
Packing and shipment
Published site mediaExport preparation is coordinated after dimensions, route, and delivery terms are confirmed.
- Packing method matched to transport conditions
- Loading record can be retained for the order
Evidence source: Published site media
Project document package
Project scope requiredDocuments are issued for the confirmed order instead of reused as generic proof.
- Approved datasheet and drawings
- Test record, packing list, and nameplate data
Evidence source: Project scope required
Images show published manufacturing, testing, and loading scenes. Final product appearance and project documents depend on the approved technical configuration.
Request evidence packageSCB13 dry type transformer is a cast-resin distribution transformer for indoor power rooms, commercial buildings, industrial plants and renewable energy projects. It is typically selected when fire safety, low maintenance, moisture resistance and compact installation are more important than the lower initial cost of oil-filled equipment. For procurement, the key items to confirm are rated capacity, primary and secondary voltage, vector group, impedance, enclosure protection, temperature control and applicable IEC routine tests.
What Buyers Should Confirm
- Rated capacity, primary voltage, secondary voltage, frequency, vector group and impedance.
- Indoor room conditions, cooling method, enclosure requirement and cable or busbar connection.
- Required routine tests, drawing language, document package and destination-country standards.
- Whether the quotation should include only transformer body or a complete enclosure package.
