YB Series
YB Pre-Installed Box-Type Substation
Why choose ZY POWER for this project
Factory-assembled power package
The MV switchgear, transformer, LV switchgear, enclosure, lighting, ventilation and auxiliary wiring can be assembled as one coordinated substation package.
Reduced site installation work
A prefabricated substation helps shorten on-site wiring, civil coordination and commissioning work compared with building a conventional power room from separate equipment.
Configurable transformer section
Dry-type or oil-immersed transformers can be selected according to fire-safety requirements, installation environment, budget and project owner preference.
Outdoor enclosure for project conditions
Enclosure material, ventilation, anti-corrosion treatment, cable entry, access doors and protection rating can be matched to site climate and maintenance needs.

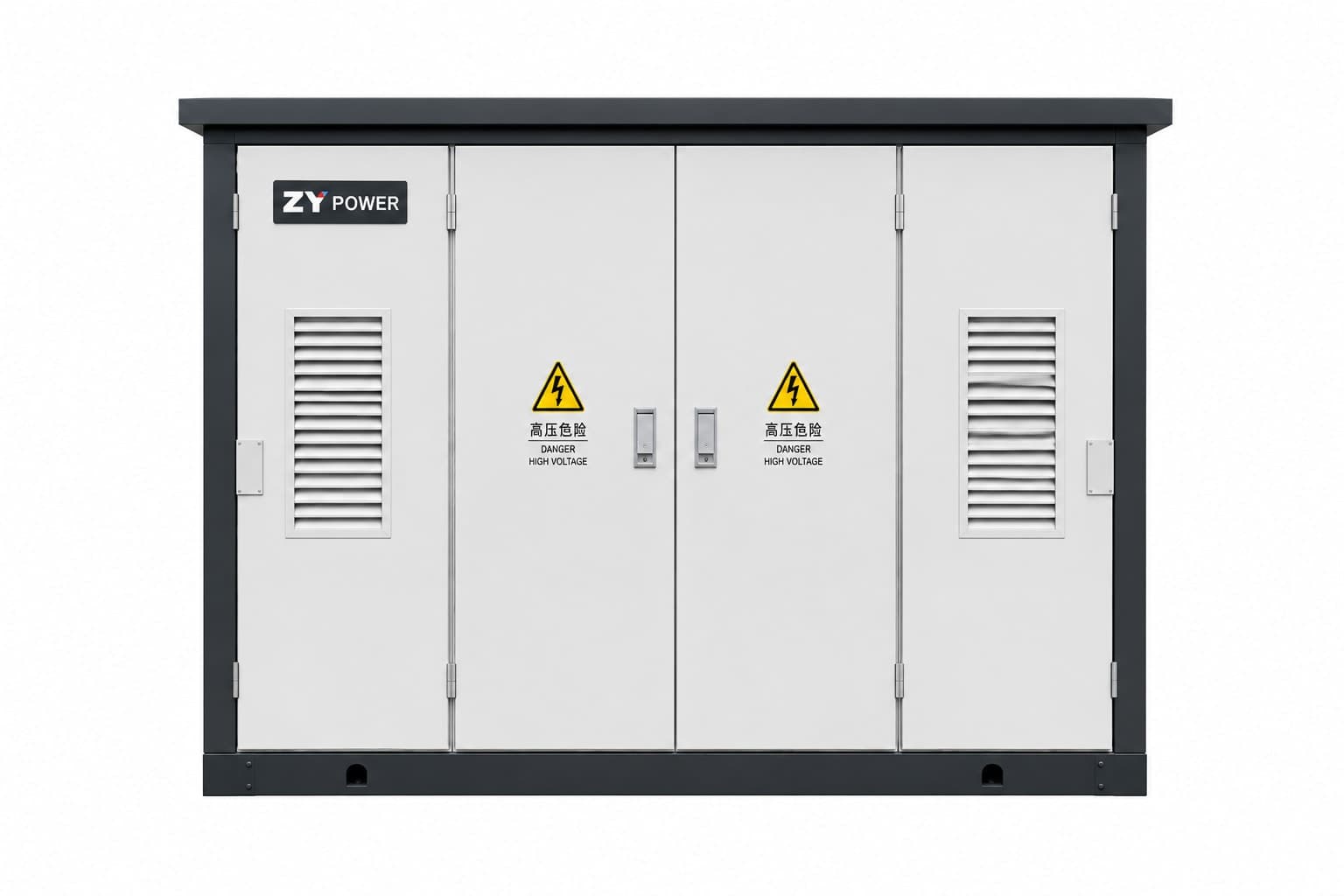

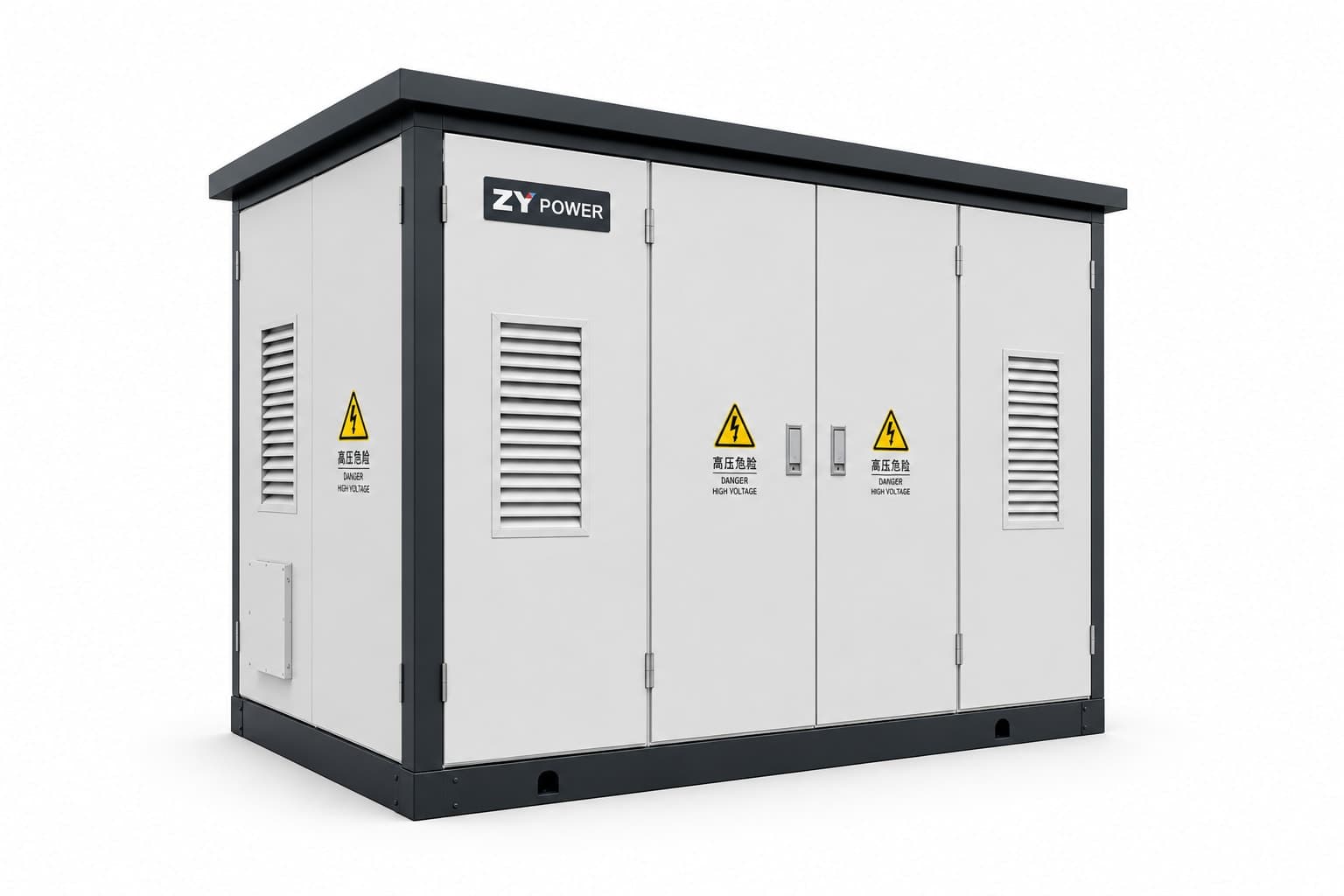

YB series pre-installed compact substation rated 315kVA, 10kV/0.4kV. Integrates HV switchgear, distribution transformer and LV switchgear in weatherproof enclosure. IEC 62271-202 certified. Suitable for urban residential, industrial parks and construction sites.
- Rated Voltage
- 10-35 kV / 0.4 kV project configuration
- Rated Capacity
- 100-2500 kVA typical range
- Frequency
- 50Hz / 60Hz
- Standard
- IEC 62271-202 reference for prefabricated substations
- Application

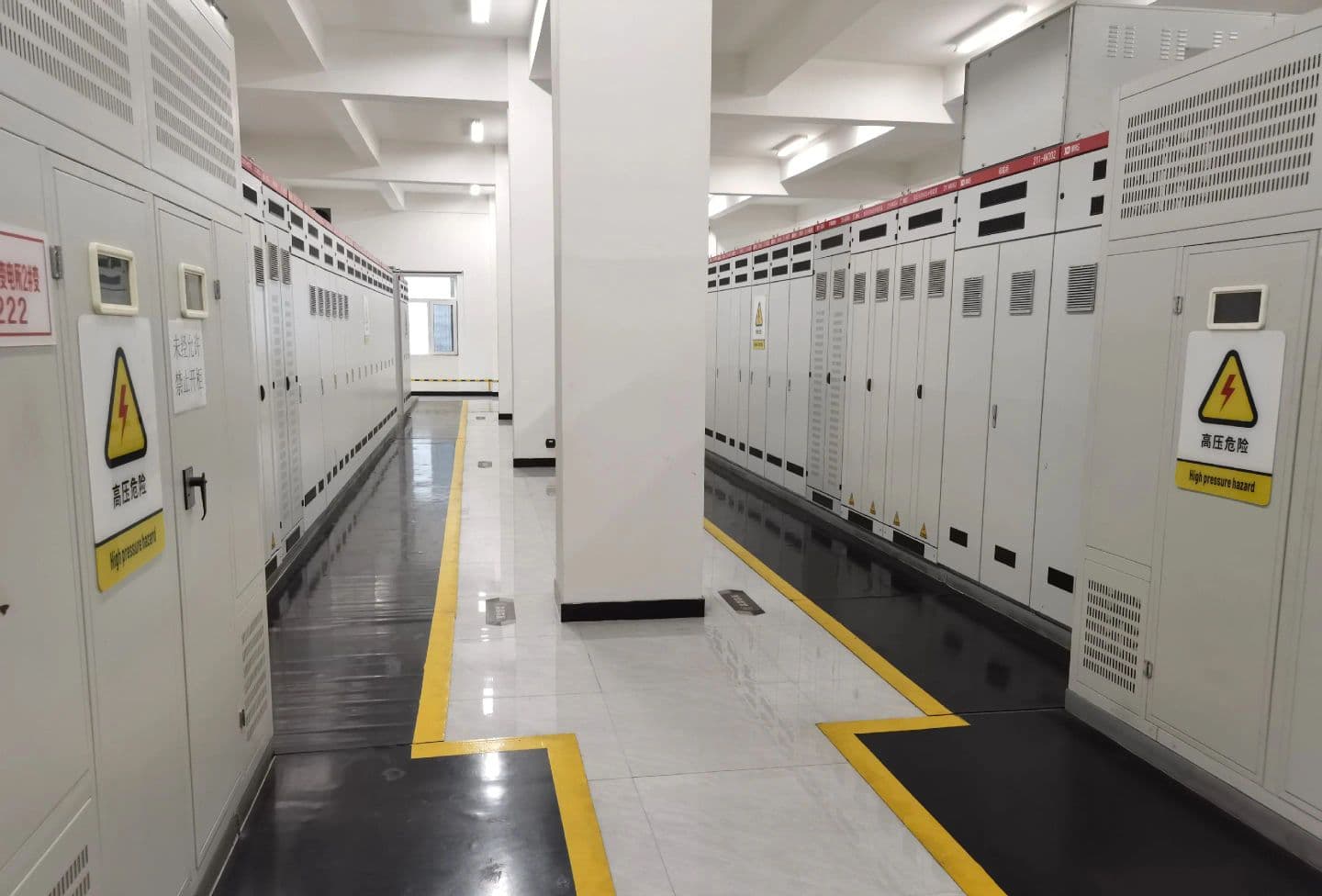

- Solar, Industrial Plants, Commercial Buildings, Infrastructure, Utilities
- Protection Level
- IP33 / IP43 / project enclosure configuration
- Installation Type
- Outdoor prefabricated substation installation
Factory and delivery evidence
Evidence buyers can verify
Review the published factory media now. Order-specific drawings, test records, packing photos, and certificates are supplied only for the confirmed project scope.
Testing information
Published site mediaRoutine test scope is confirmed against the applicable standard and approved specification.
- Routine test record by serial number
- FAT scope agreed before inspection
Evidence source: Published site media
Packing and shipment
Published site mediaExport preparation is coordinated after dimensions, route, and delivery terms are confirmed.
- Packing method matched to transport conditions
- Loading record can be retained for the order
Evidence source: Published site media
Project document package
Project scope requiredDocuments are issued for the confirmed order instead of reused as generic proof.
- Approved datasheet and drawings
- Test record, packing list, and nameplate data
Evidence source: Project scope required
Images show published manufacturing, testing, and loading scenes. Final product appearance and project documents depend on the approved technical configuration.
Request evidence packageYB prefabricated substation is a factory-assembled package integrating medium-voltage switchgear, distribution transformer and low-voltage switchgear in one outdoor enclosure. It helps reduce site installation time and is often used in industrial parks, commercial buildings, solar farms, temporary power supply and utility distribution nodes. Key procurement points include transformer capacity, MV scheme, LV feeder layout, enclosure material, ventilation, protection grade and transport dimensions.
What Buyers Should Confirm
- Transformer capacity, MV voltage, LV voltage, frequency and single-line diagram.
- MV switchgear type, transformer type, LV feeder schedule and metering requirement.
- Outdoor environment, enclosure material, IP rating, ventilation and anti-corrosion design.
- Overall dimensions, lifting points, packing method and destination-country transport limits.
