S22-M Series

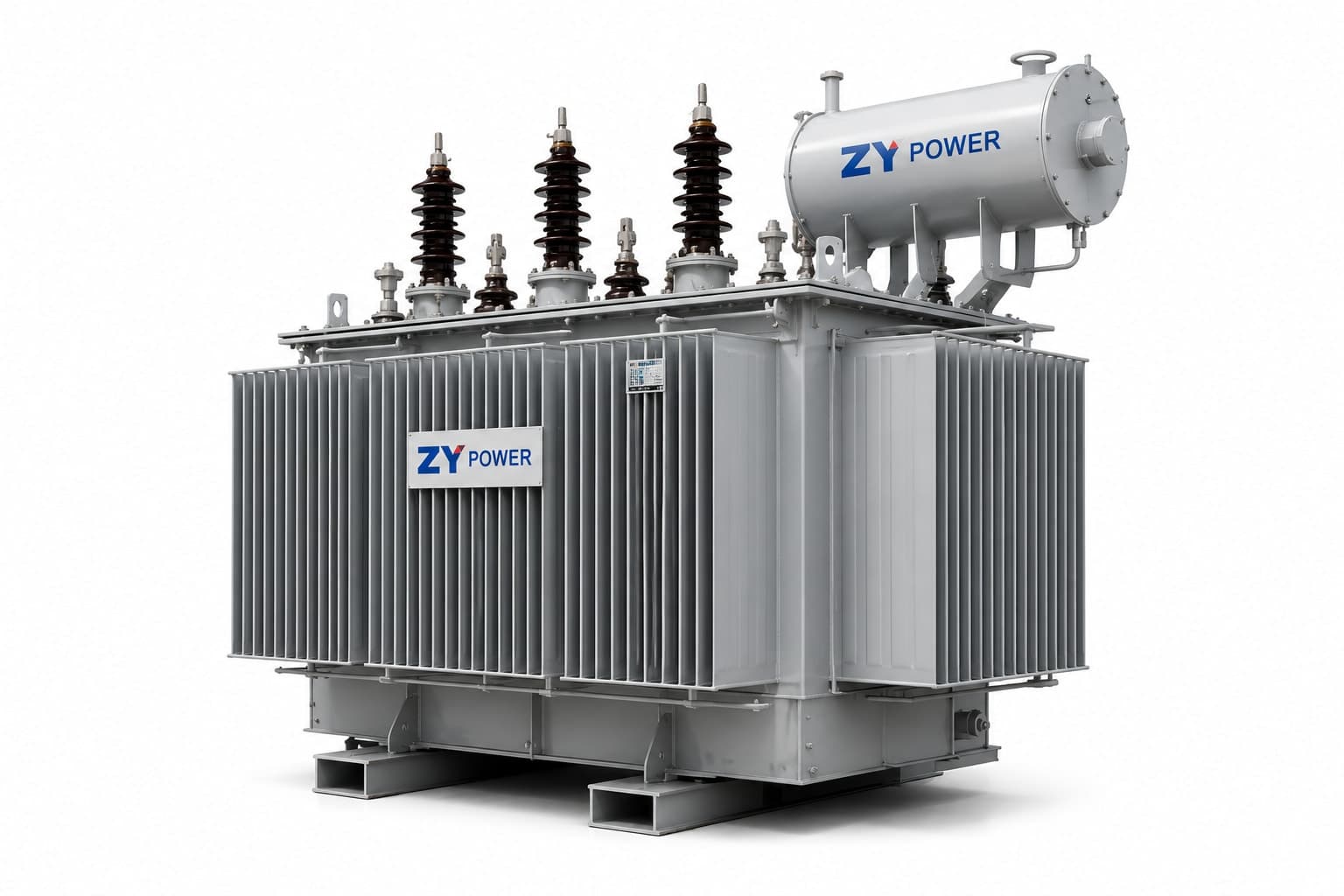

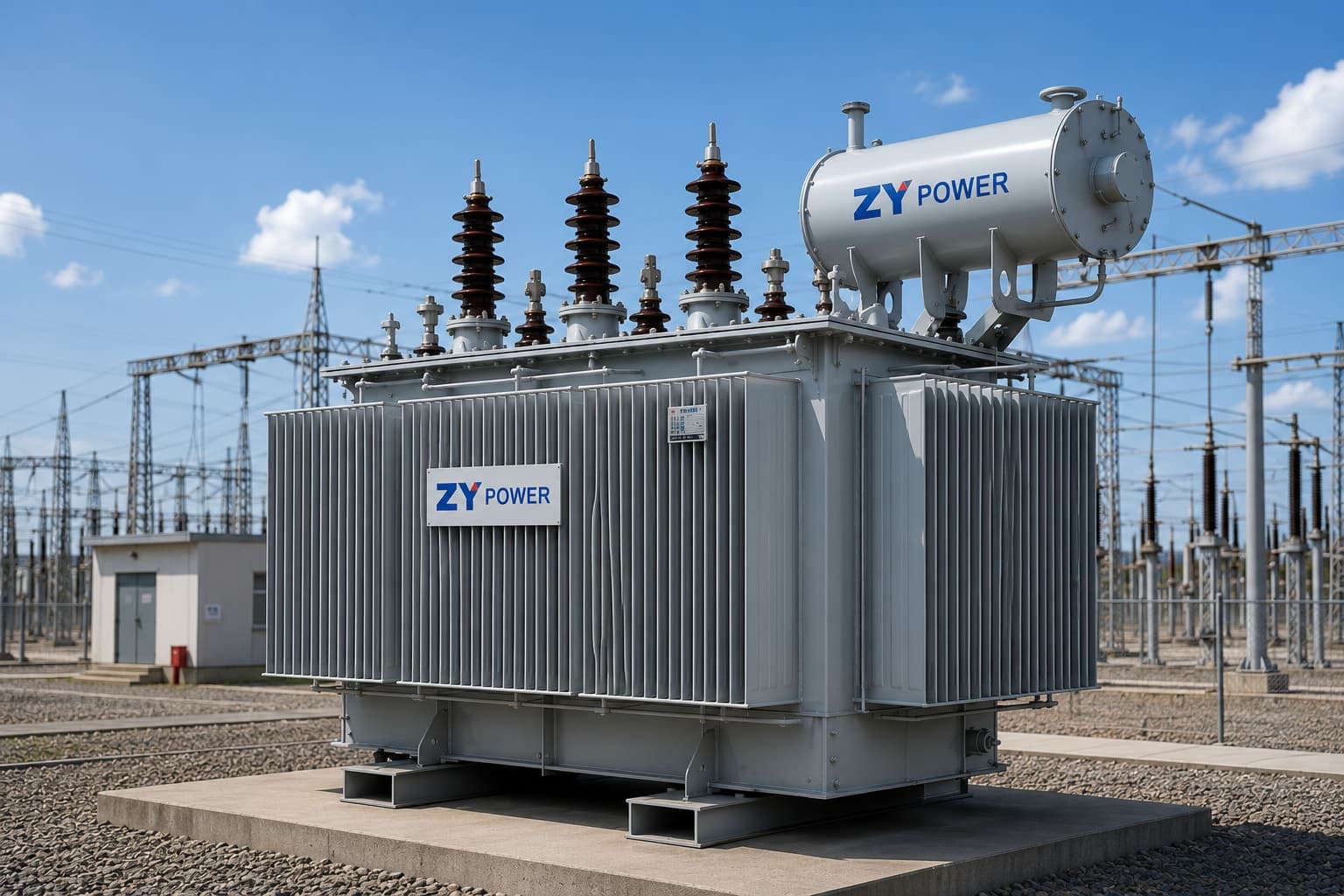

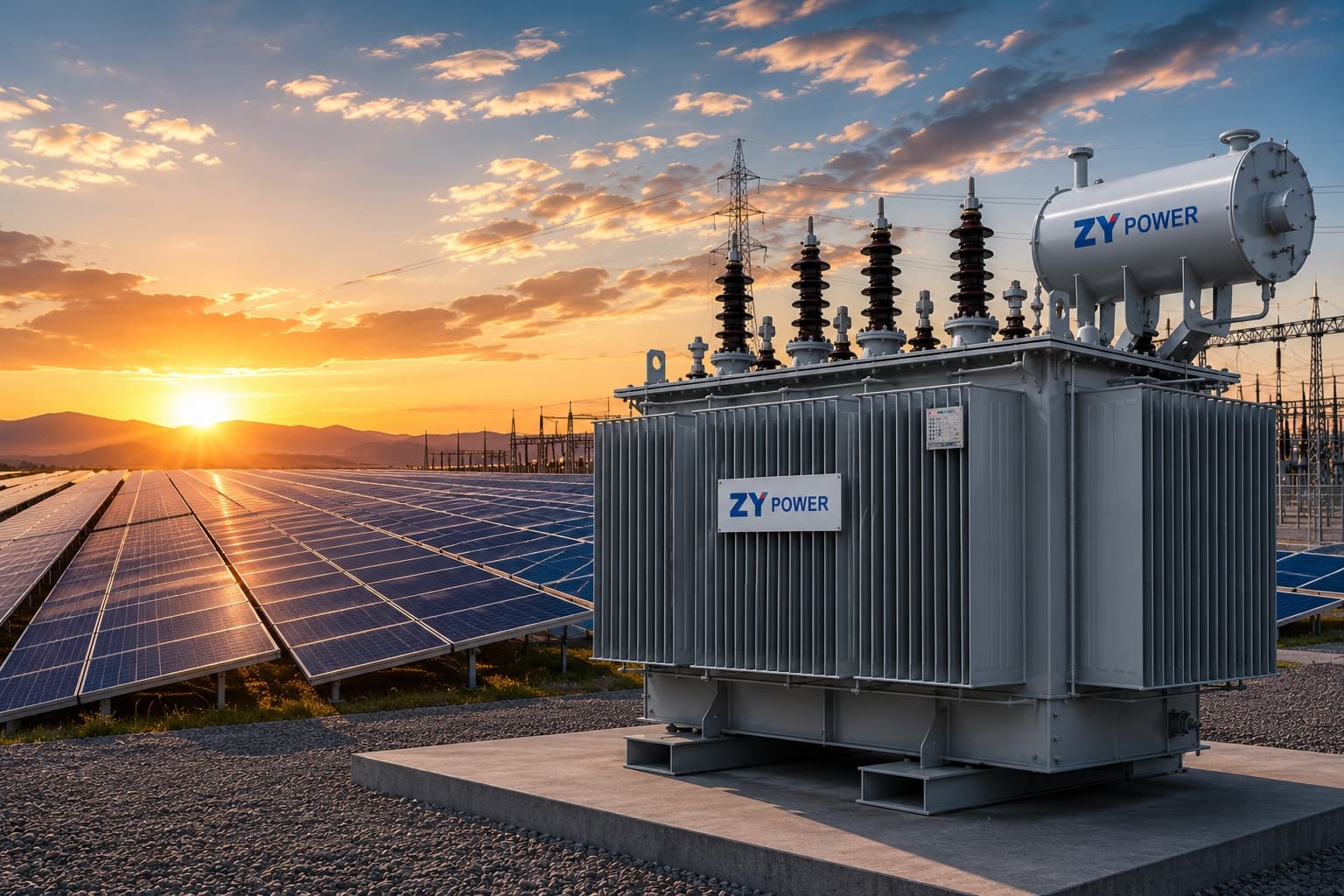

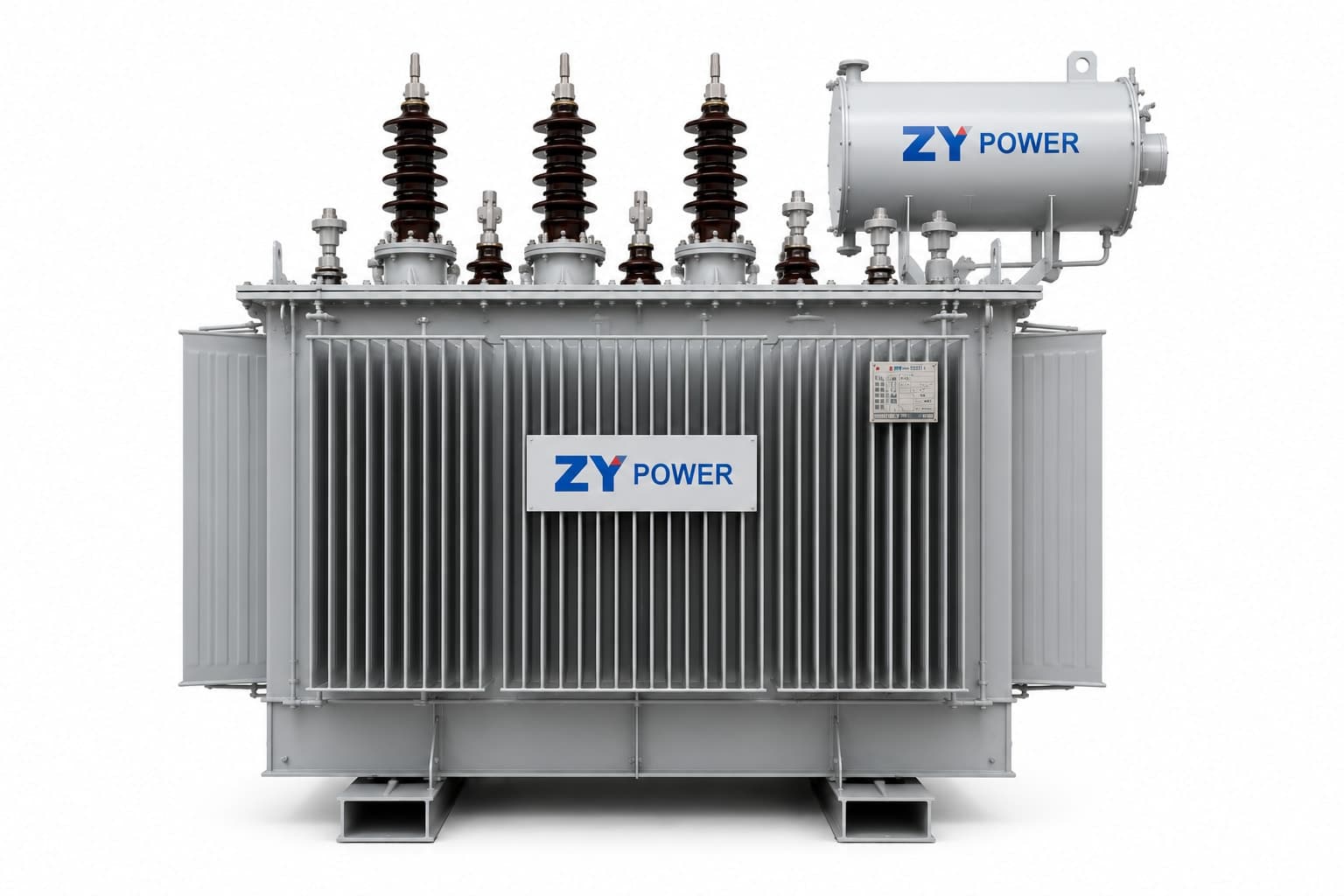

S22-M Ultra-Low Loss Oil-Immersed Transformer
Why choose ZY POWER for this project
Lower-loss design for long service life
S22-M is positioned for projects where electricity loss, long operating hours and owner life-cycle cost matter more than the lowest upfront price.
Utility and EPC tender compatibility
Voltage ratio, vector group, impedance, tapping range, accessories and documentation can be prepared for project submittals and tender reviews.
Outdoor distribution reliability
The oil-immersed structure supports outdoor operation, natural cooling and robust insulation for distribution substations and industrial feeders.
Configurable shipment package
Packing dimensions, oil shipment method, accessories and loading photos can be coordinated before export delivery.
S22-M series oil-immersed transformer for utility distribution, industrial power systems, rural electrification, and outdoor substation applications. Detailed project ratings and engineering parameters are configured after project review.
- Rated Voltage
- 10-35 kV / 0.4 kV project configuration
- Rated Capacity
- 30-2500 kVA typical distribution range
- Frequency
- 50Hz / 60Hz
- Standard
- IEC 60076 transformer standard family
- Application
- Utilities, Industrial Plants, Solar, Infrastructure, Manufacturing
- Protection Level
- Outdoor sealed tank, protection accessories project configured
- Installation Type
- Outdoor pad-mounted or pole/platform installation
Factory and delivery evidence
Evidence buyers can verify
Review the published factory media now. Order-specific drawings, test records, packing photos, and certificates are supplied only for the confirmed project scope.
Testing information
Published site mediaRoutine test scope is confirmed against the applicable standard and approved specification.
- Routine test record by serial number
- FAT scope agreed before inspection
Evidence source: Published site media
Packing and shipment
Published site mediaExport preparation is coordinated after dimensions, route, and delivery terms are confirmed.
- Packing method matched to transport conditions
- Loading record can be retained for the order
Evidence source: Published site media
Project document package
Project scope requiredDocuments are issued for the confirmed order instead of reused as generic proof.
- Approved datasheet and drawings
- Test record, packing list, and nameplate data
Evidence source: Project scope required
Images show published manufacturing, testing, and loading scenes. Final product appearance and project documents depend on the approved technical configuration.
Request evidence packageS22-M oil immersed transformer is a high-efficiency distribution transformer for utilities, industrial plants, renewable-energy projects and long-life power infrastructure. It is usually selected when the buyer wants lower operating losses than older distribution transformer series and needs a stronger life-cycle-cost argument for a new installation. For procurement, compare guaranteed no-load loss, load loss, impedance, temperature rise, accessories, test scope and delivery package instead of looking only at the purchase price.
What Buyers Should Confirm
- Guaranteed no-load loss, load loss, impedance and temperature rise.
- Required loss table from the project tender or local utility.
- Outdoor accessories, tank protection, terminal arrangement and oil handling requirement.
- Routine test report, outline drawing, packing list and export document language.
