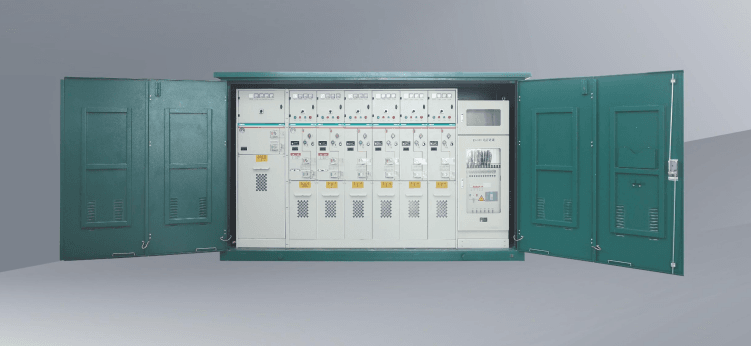

RMU Series
12kV Ring Main Unit
Why choose ZY POWER for this project
Compact MV distribution layout
RMU is suitable for secondary distribution rooms, compact substations and utility distribution nodes where panel footprint is limited.
Loop-feed network configuration
Incoming and outgoing ring network modules can be arranged with transformer protection or metering modules according to the single-line diagram.
Transformer protection options
Fuse-switch or vacuum breaker protection can be reviewed according to transformer capacity, fault level and project specification.
Automation-ready by project
Motor operation, auxiliary contacts, RTU interface, CT/PT and communication options can be added when distribution automation is required.
RMU ring main unit for 12kV secondary distribution, 630A loop-feed networks, compact substations and transformer protection. Module combinations for incoming, outgoing, metering and fuse protection. IEC 62271 project configuration for utility, industrial and renewable-energy distribution.
- Rated Voltage
- 12 kV
- Rated Capacity
- 630 A
- Frequency
- 50Hz / 60Hz
- Standard
- IEC 62271 medium-voltage switchgear reference standard
- Application
- Utilities, Commercial Buildings, Solar, Infrastructure, Industrial Plants
- Protection Level
- Project configured
- Installation Type
- Project configured
Factory and delivery evidence
Evidence buyers can verify
Review the published factory media now. Order-specific drawings, test records, packing photos, and certificates are supplied only for the confirmed project scope.
Testing information
Published site mediaRoutine test scope is confirmed against the applicable standard and approved specification.
- Routine test record by serial number
- FAT scope agreed before inspection
Evidence source: Published site media
Packing and shipment
Published site mediaExport preparation is coordinated after dimensions, route, and delivery terms are confirmed.
- Packing method matched to transport conditions
- Loading record can be retained for the order
Evidence source: Published site media
Project document package
Project scope requiredDocuments are issued for the confirmed order instead of reused as generic proof.
- Approved datasheet and drawings
- Test record, packing list, and nameplate data
Evidence source: Project scope required
Images show published manufacturing, testing, and loading scenes. Final product appearance and project documents depend on the approved technical configuration.
Request evidence packageRMU ring main unit is a compact medium-voltage switchgear solution for 12 kV secondary distribution, loop-feed networks, compact substations and transformer protection. Compared with a full metal-clad switchgear lineup, an RMU is usually selected when the project needs a smaller footprint, simpler feeder arrangement and fast installation. Buyers should confirm module combination, load break switch or vacuum breaker function, fuse protection, automation requirement, cable direction, enclosure condition and routine test scope before production.
What Buyers Should Confirm
- Rated voltage, rated current, short-circuit level and system earthing method.
- Module quantity and function: incoming, outgoing, transformer protection, metering or busbar section.
- Load-break switch, fuse-switch or vacuum breaker requirement and relay or automation scope.
- Cable entry direction, enclosure environment, routine test report and packing requirement.
