KYN28A-12 Series
KYN28A-12 Metal-Clad Withdrawable Switchgear
Why choose ZY POWER for this project
Metal-clad withdrawable construction
KYN28A-12 uses a compartmentalized indoor structure with withdrawable breaker truck, helping maintenance teams isolate, inspect and replace the breaker unit more efficiently.
Flexible feeder configuration
Incoming, outgoing, bus tie, metering, transformer feeder, motor feeder and capacitor feeder panels can be arranged according to the single-line diagram.
Protection and metering integration
Protection relays, CTs, VTs, meters, auxiliary contacts and communication interfaces can be configured for utility, industrial and EPC project requirements.
Factory-tested panel assembly
Mechanical operation, interlocking, wiring continuity, insulation and power-frequency withstand checks can be completed before packing and shipment.

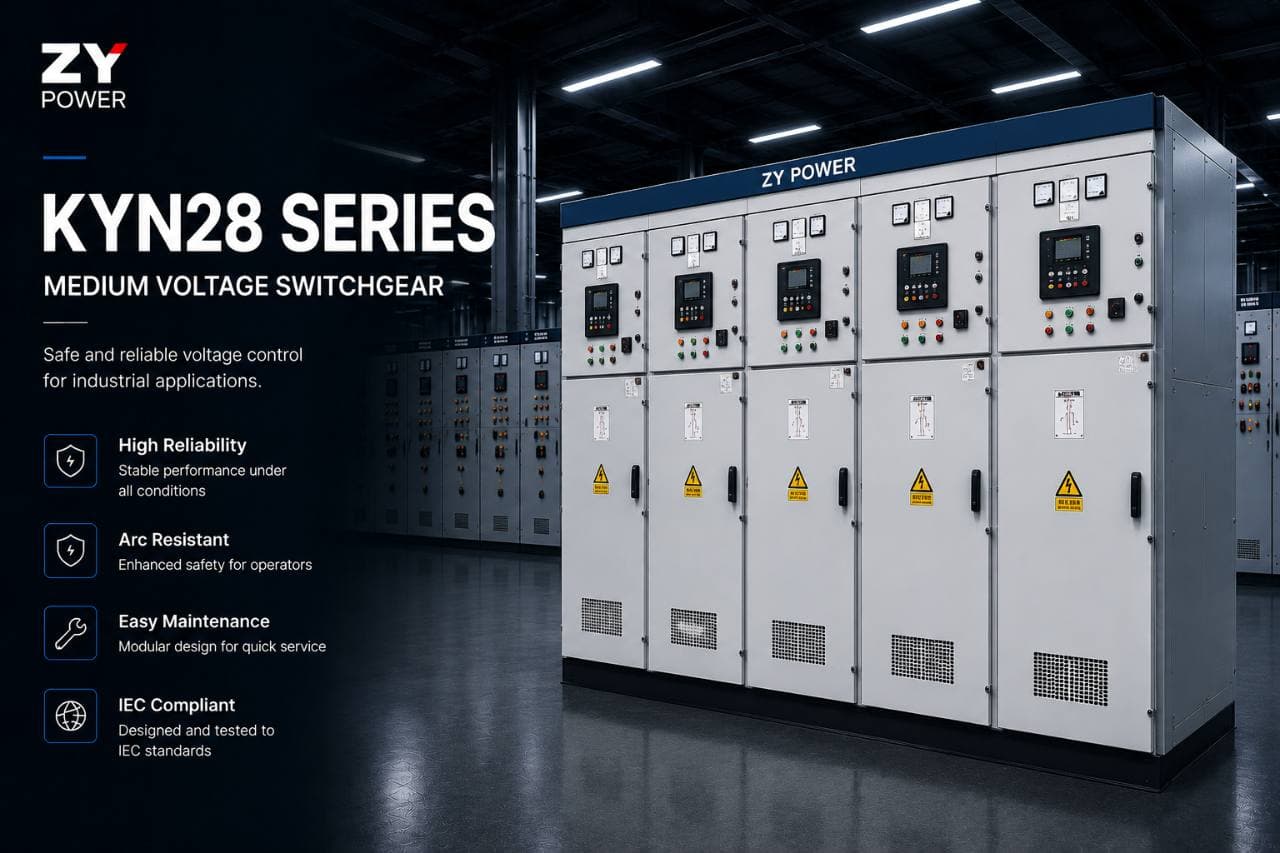

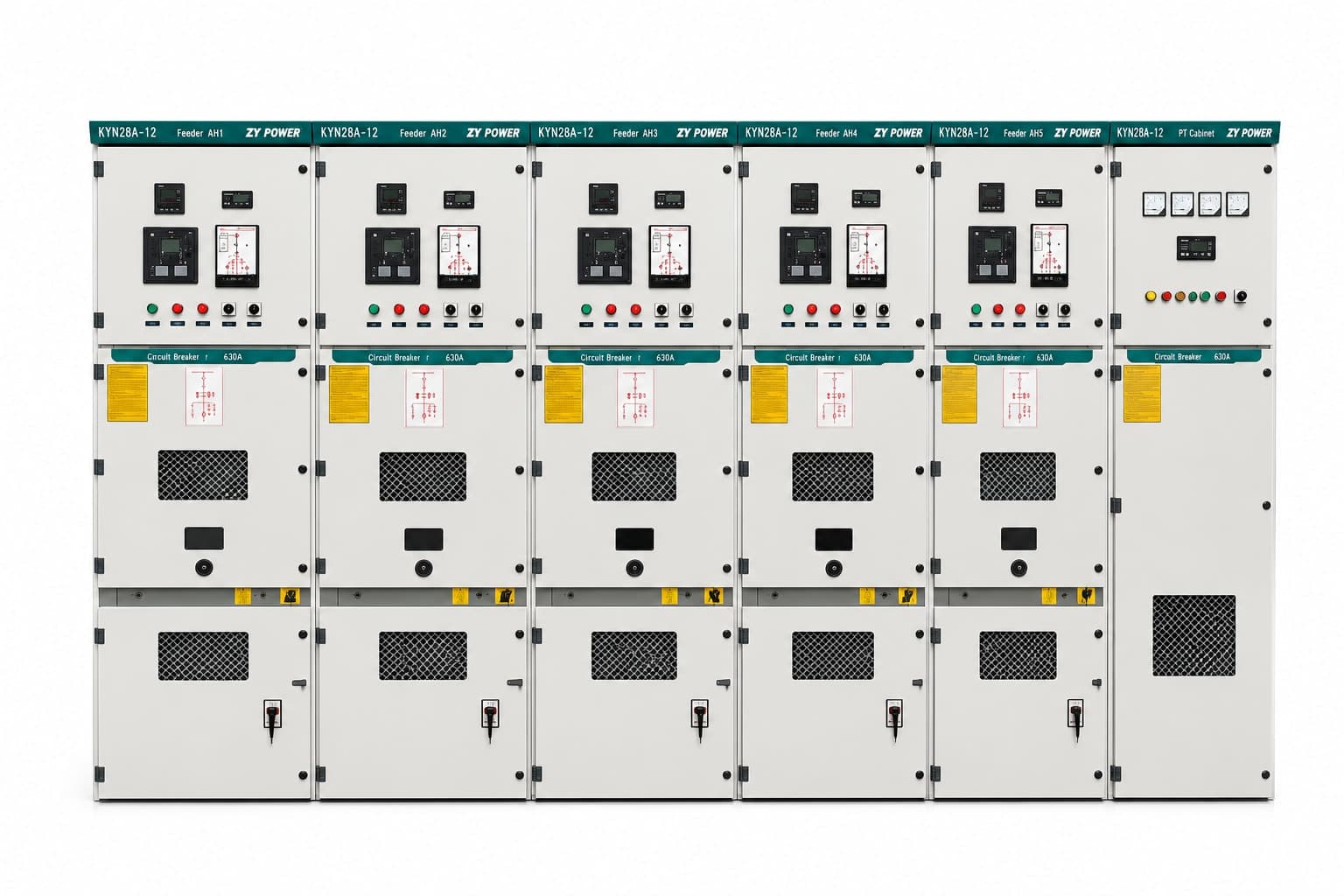

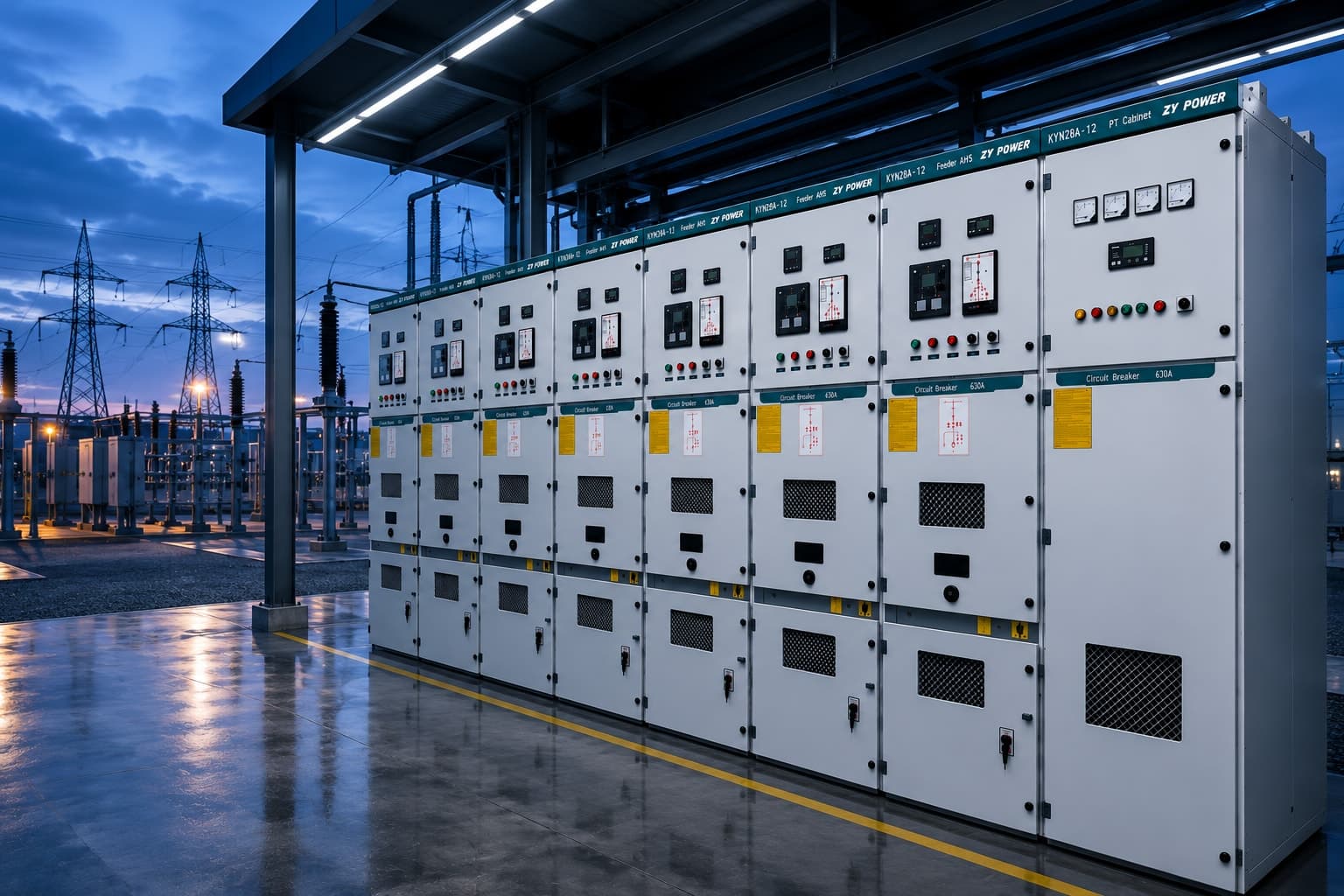

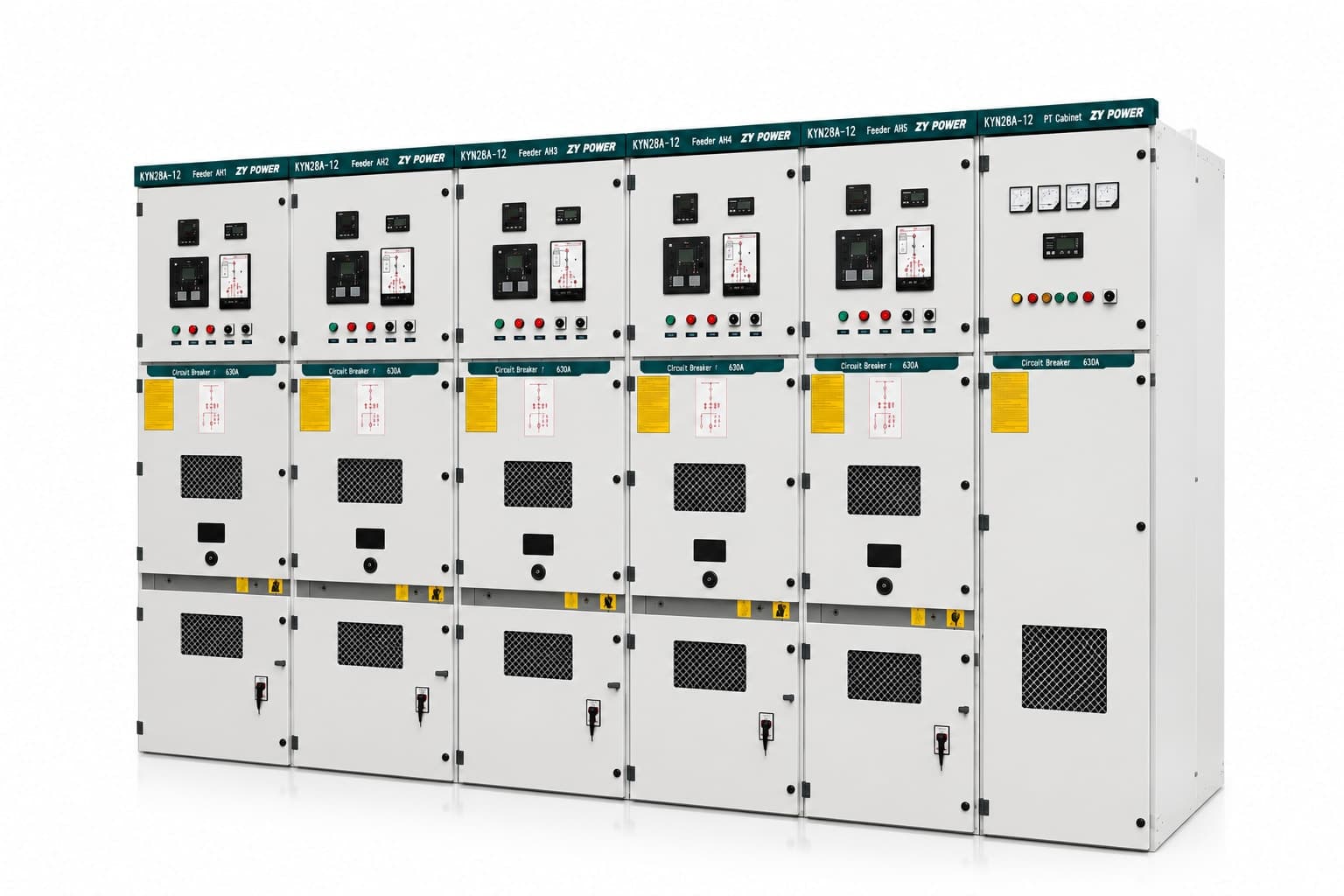

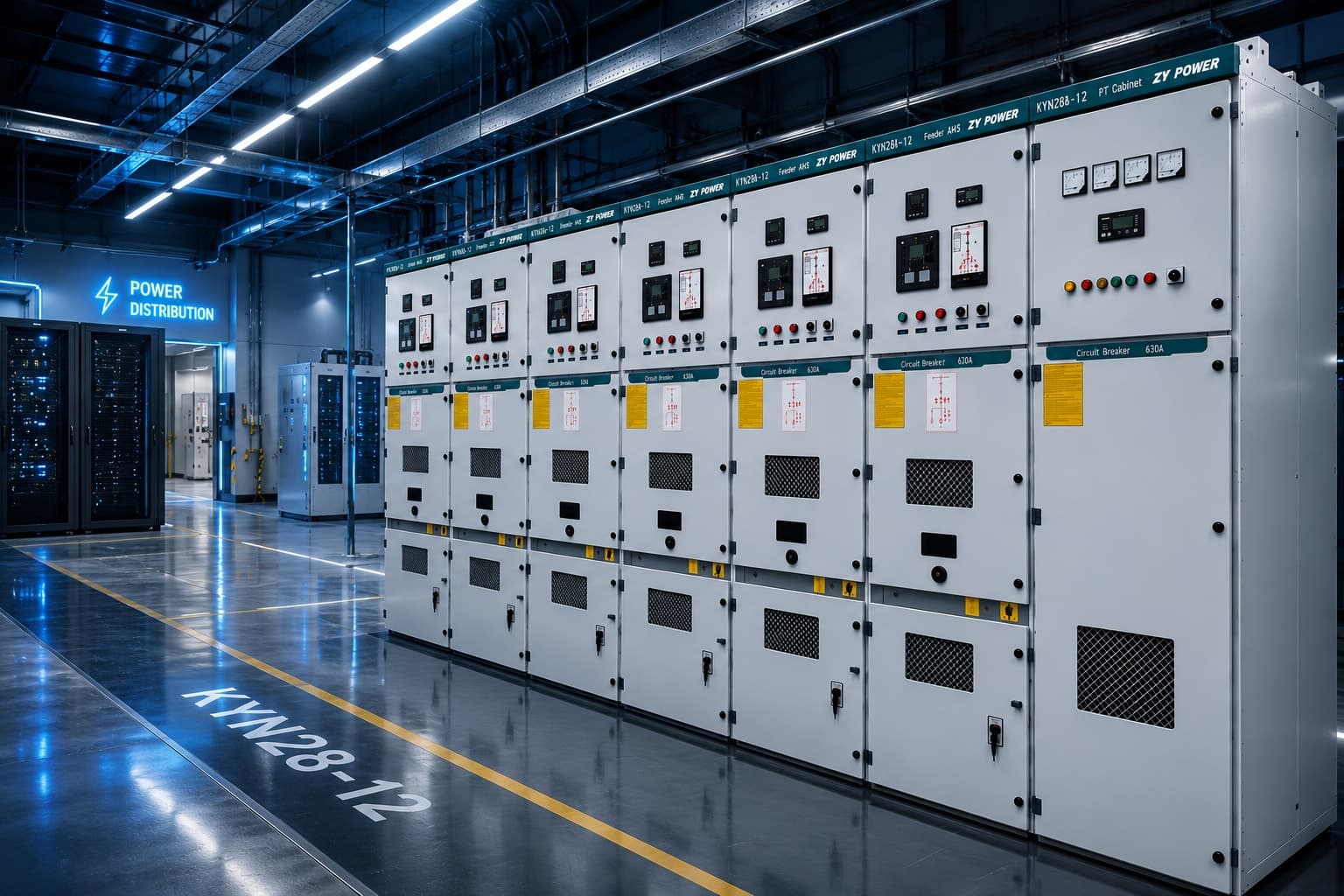

KYN28A-12 indoor AC metal-clad withdrawable switchgear, rated 12kV 1250A 25kA. Five-prevention interlocking. Modular metalclad design with independent compartments. IEC 62271-200 / GB 3906 compliant.
- Rated Voltage
- 0.4-40.5 kV project configuration
- Rated Current
- 630-4000 A project configuration
- Frequency
- 50Hz / 60Hz
- Standard
- IEC 62271 medium-voltage switchgear reference standard
- Application
- Utilities, Industrial Plants, Solar, Manufacturing, Infrastructure
- Protection Level
- IP30-IP54 project configuration
- Installation Type
- Indoor floor-standing panel installation
Factory and delivery evidence
Evidence buyers can verify
Review the published factory media now. Order-specific drawings, test records, packing photos, and certificates are supplied only for the confirmed project scope.
Testing information
Published site mediaRoutine test scope is confirmed against the applicable standard and approved specification.
- Routine test record by serial number
- FAT scope agreed before inspection
Evidence source: Published site media
Packing and shipment
Published site mediaExport preparation is coordinated after dimensions, route, and delivery terms are confirmed.
- Packing method matched to transport conditions
- Loading record can be retained for the order
Evidence source: Published site media
Project document package
Project scope requiredDocuments are issued for the confirmed order instead of reused as generic proof.
- Approved datasheet and drawings
- Test record, packing list, and nameplate data
Evidence source: Project scope required
Images show published manufacturing, testing, and loading scenes. Final product appearance and project documents depend on the approved technical configuration.
Request evidence packageKYN28A-12 is a 12 kV indoor metal-clad withdrawable switchgear system for medium-voltage distribution. It is widely used in substations, power plants, industrial power rooms and renewable energy projects. The main procurement focus is rated current, short-time withstand current, internal arc requirement, vacuum circuit breaker brand, protection relay, metering scheme and interlocking arrangement.
Engineering Specification Snapshot
Use these items to prepare a focused RFQ before final drawings and relay schemes are confirmed.
| RFQ item | Engineering note |
|---|---|
| Rated voltage | 3.6-12 kV indoor AC metal-clad switchgear |
| Rated current | 630 A, 1250 A, 1600 A, 2000 A, 2500 A, 3150 A or project configuration |
| Short-time withstand current | 25 kA, 31.5 kA or 40 kA according to fault-level study |
| Main breaker | Withdrawable VCB truck, commonly VS1 / ZN63 type or project-specified brand |
| Panel functions | Incoming, outgoing, bus tie, metering, transformer feeder and capacitor feeder |
| Protection and metering | Protection relay, CT, VT, meters, control voltage and communication by SLD |
| Cable entry | Bottom or top entry confirmed with cable trench, room layout and panel arrangement |
| Factory documents | GA drawing, secondary schematic, routine test report, packing list and nameplate data |
What Buyers Should Confirm
- Rated voltage, rated current, short-circuit current and busbar configuration.
- Incoming, outgoing, bus tie, metering and transformer feeder panel functions.
- Breaker type, relay model, CT/PT ratios, control voltage and communication requirement.
- Internal arc requirement, cable entry direction, panel layout and FAT documentation.
