GGD Series

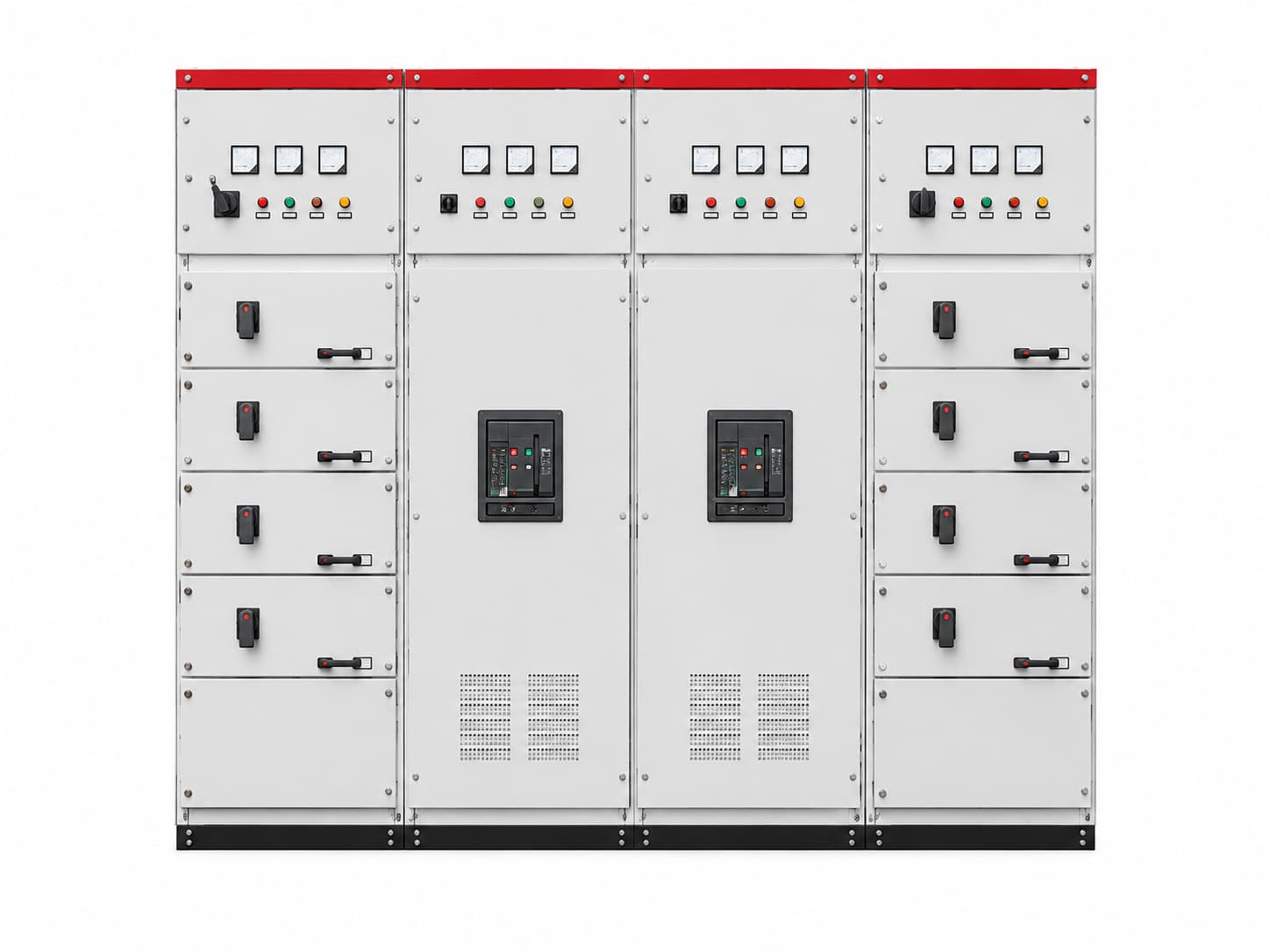

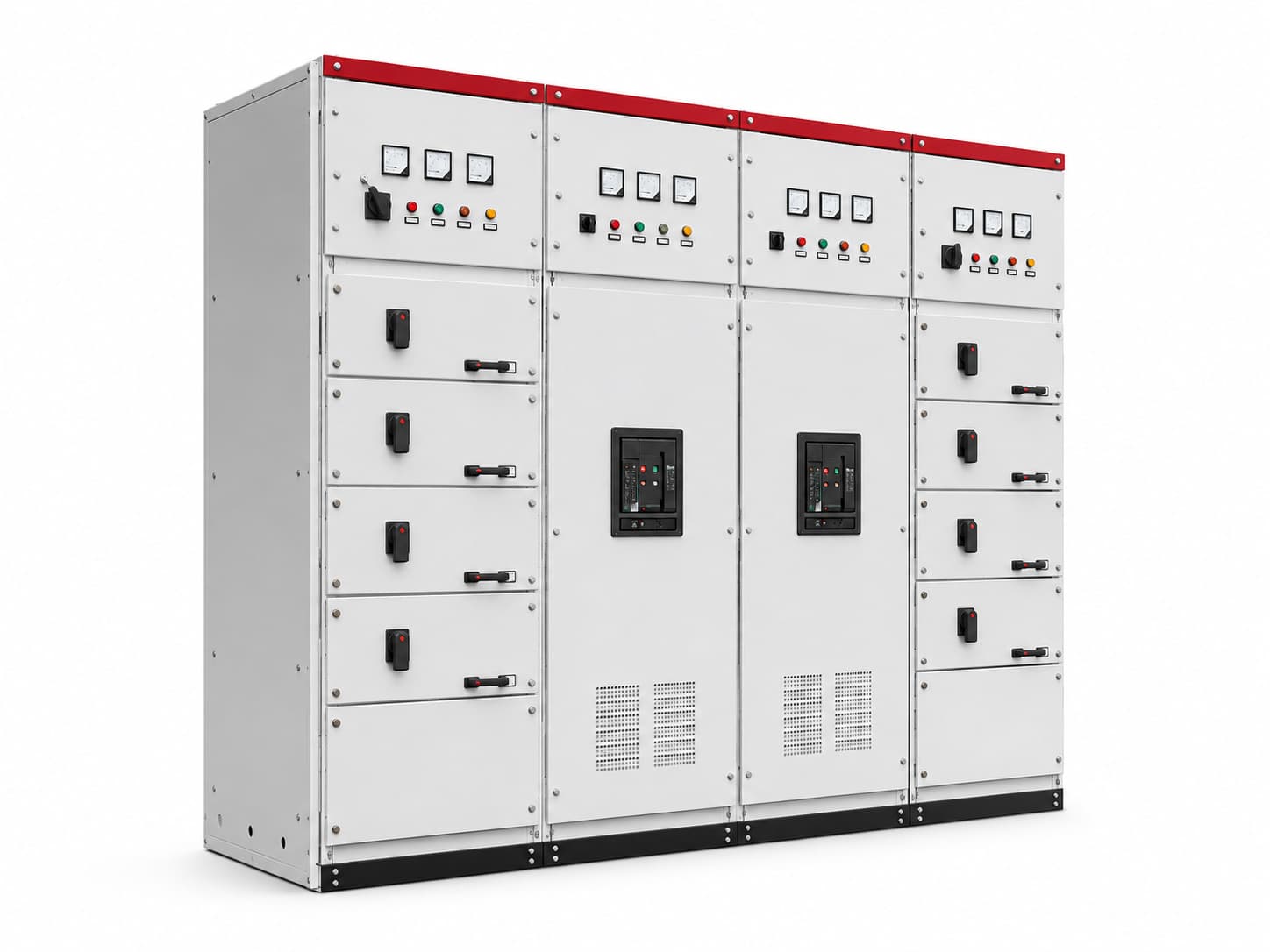

GGD Fixed LV Distribution Panel
Why choose ZY POWER for this project
Fixed-type LV distribution cabinet
GGD is a practical fixed panel for incoming, feeder, metering and general low-voltage distribution circuits where drawout units are not required.
Cost-effective project configuration
It is suitable for projects that need a simple cabinet structure, clear feeder arrangement and reliable power distribution with controlled budget.
Flexible component selection
Breakers, meters, surge protection, capacitors and auxiliary components can be selected according to buyer specification and project budget.
Straightforward maintenance access
The fixed structure provides a clear internal arrangement for standard inspection, cable termination and routine maintenance.
GGD series low voltage fixed switchgear, rated main busbar 1600A, short-time withstand 30kA/1s. Open-frame design for cost-effective LV power distribution. Suitable for power plants, substations and industrial facilities. IEC 61439-1 compliant.
- Rated Voltage
- 0.4-40.5 kV project configuration
- Rated Current
- 630-4000 A project configuration
- Frequency
- 50Hz / 60Hz
- Standard
- IEC 61439 low-voltage switchgear assembly reference standard
- Application
- Commercial Buildings, Industrial Plants, Manufacturing, Infrastructure
- Protection Level
- IP30-IP54 project configuration
- Installation Type
- Indoor floor-standing panel installation
Factory and delivery evidence
Evidence buyers can verify
Review the published factory media now. Order-specific drawings, test records, packing photos, and certificates are supplied only for the confirmed project scope.
Testing information
Published site mediaRoutine test scope is confirmed against the applicable standard and approved specification.
- Routine test record by serial number
- FAT scope agreed before inspection
Evidence source: Published site media
Packing and shipment
Published site mediaExport preparation is coordinated after dimensions, route, and delivery terms are confirmed.
- Packing method matched to transport conditions
- Loading record can be retained for the order
Evidence source: Published site media
Project document package
Project scope requiredDocuments are issued for the confirmed order instead of reused as generic proof.
- Approved datasheet and drawings
- Test record, packing list, and nameplate data
Evidence source: Project scope required
Images show published manufacturing, testing, and loading scenes. Final product appearance and project documents depend on the approved technical configuration.

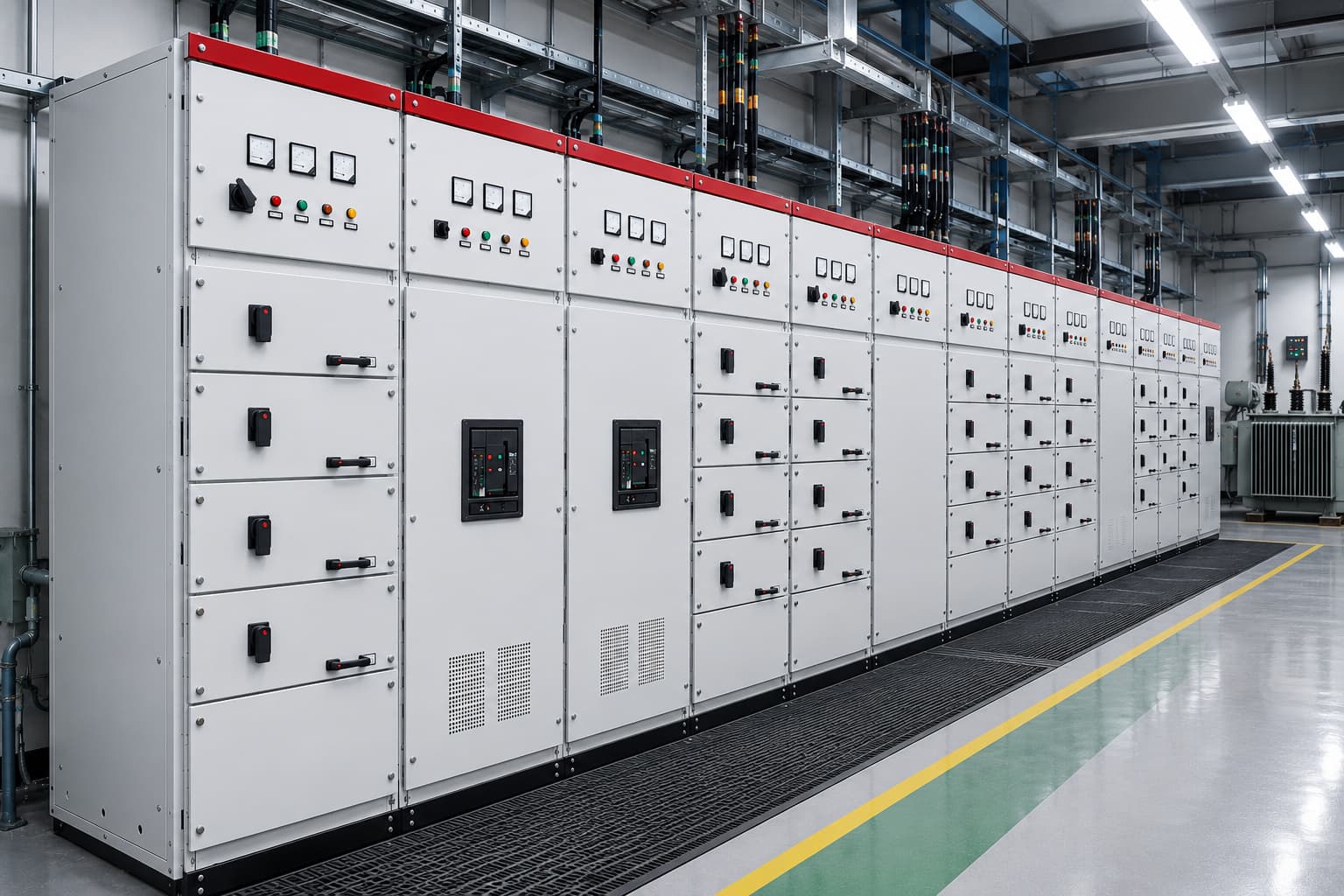

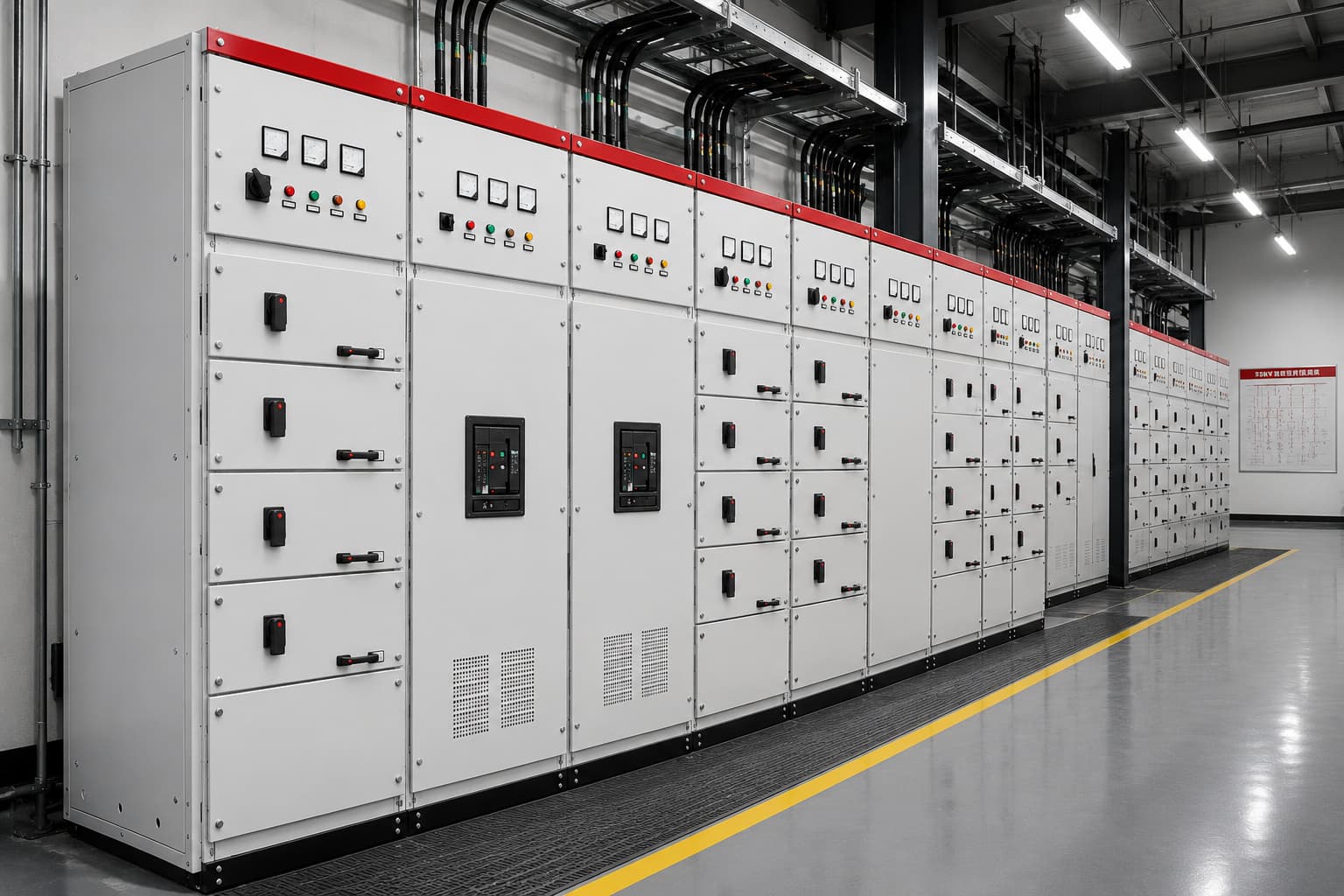

Request evidence packageGGD is a fixed low-voltage distribution cabinet for economical and reliable power distribution. It is widely used in substations, workshops, commercial buildings and infrastructure power rooms. It is suitable when the project needs a simple fixed panel structure, clear feeder arrangement and cost-effective LV distribution.
What Buyers Should Confirm
- Rated voltage, main busbar current, short-circuit level and feeder schedule.
- Incoming breaker type, outgoing feeder quantity, metering and protection components.
- Top or bottom cable entry, panel arrangement and maintenance access requirement.
- Preferred component brands and routine test documentation.
