GCS Series

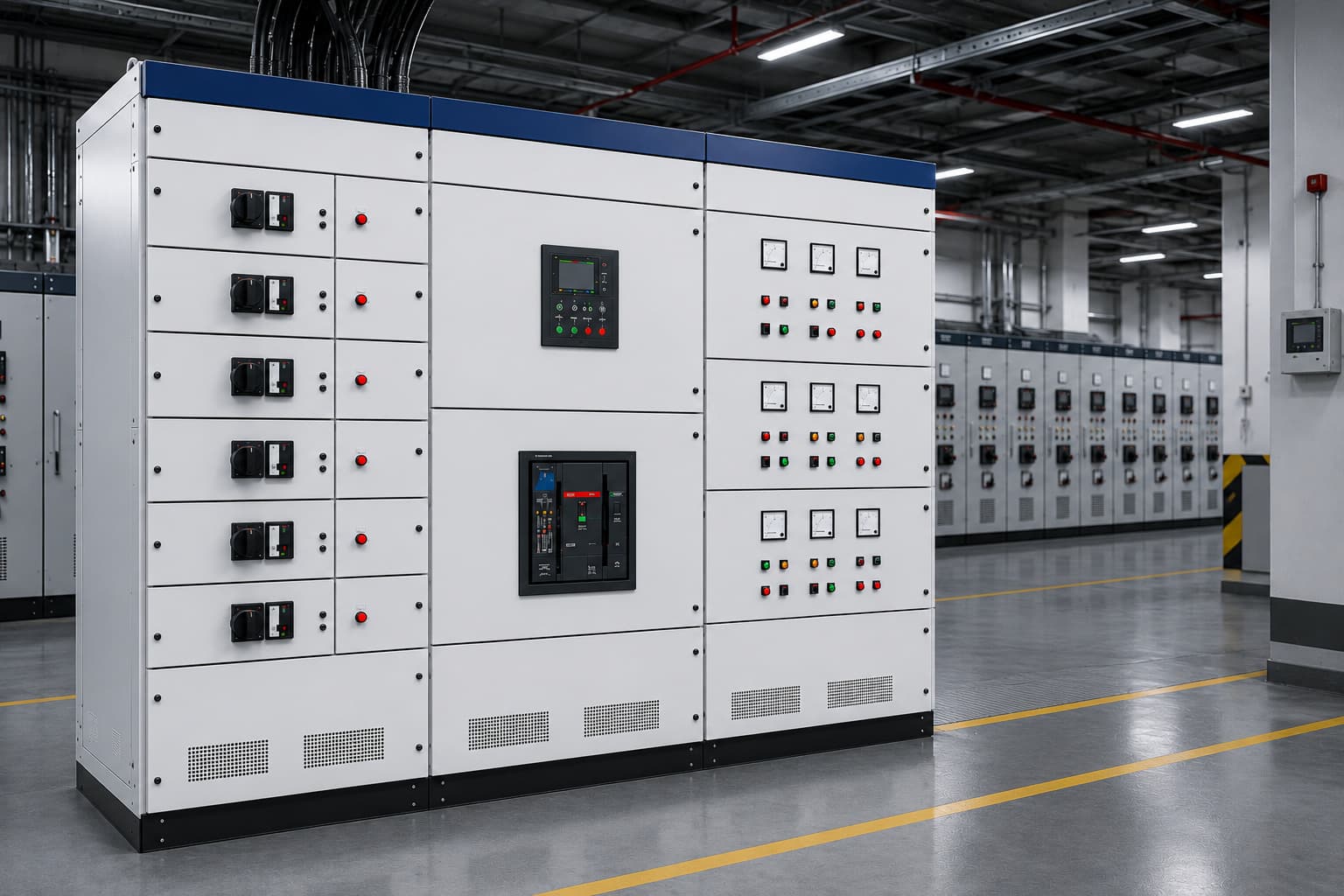

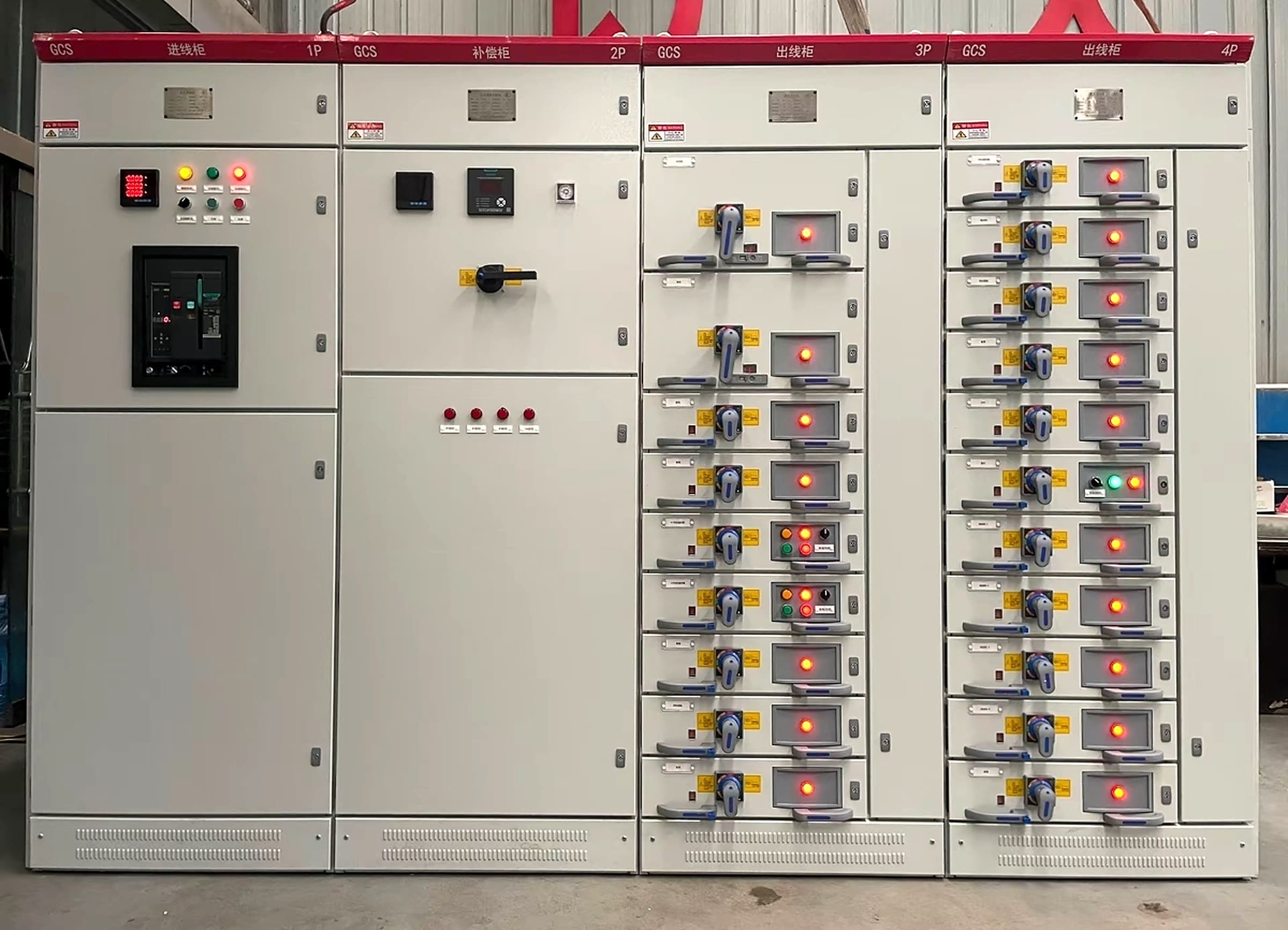

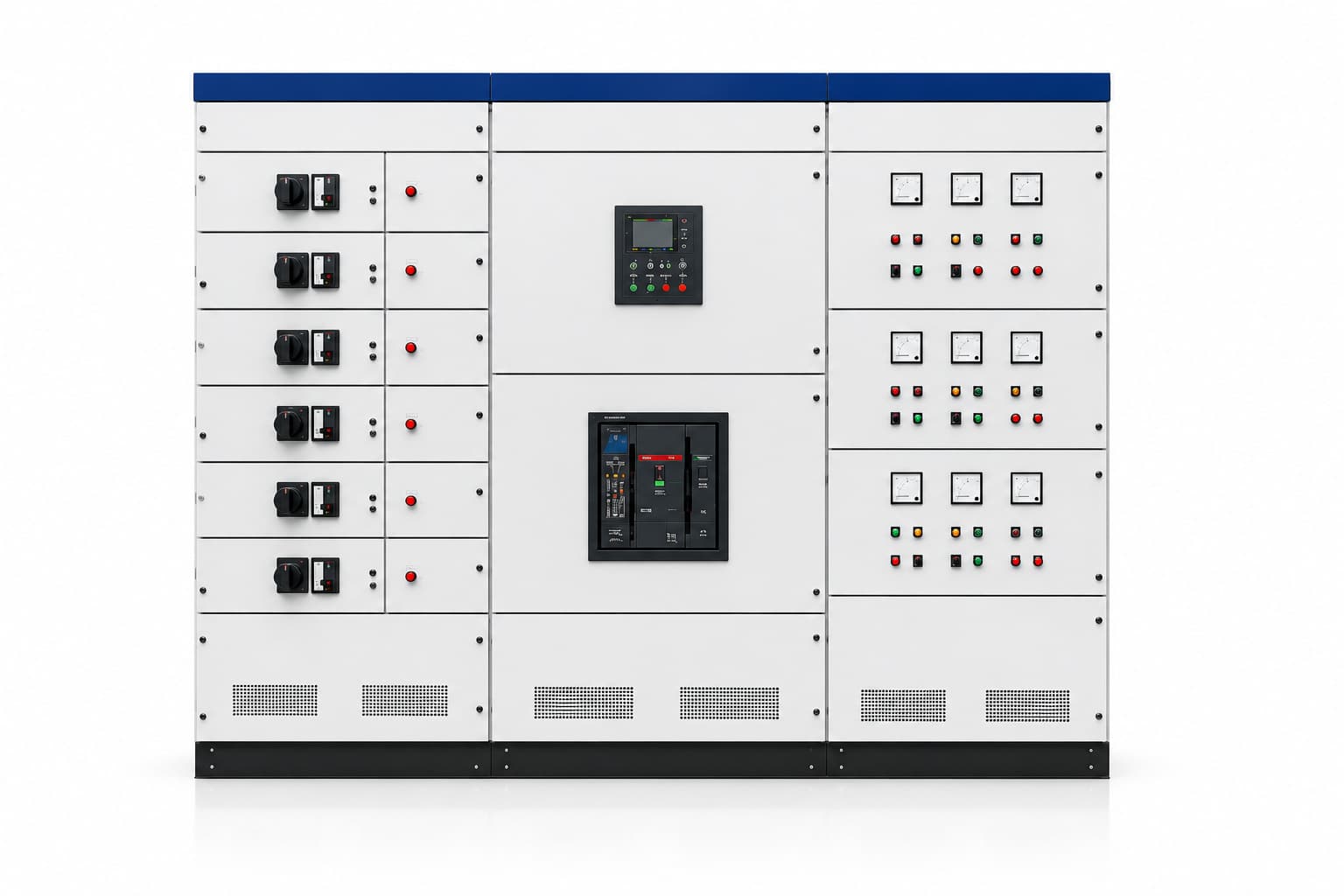

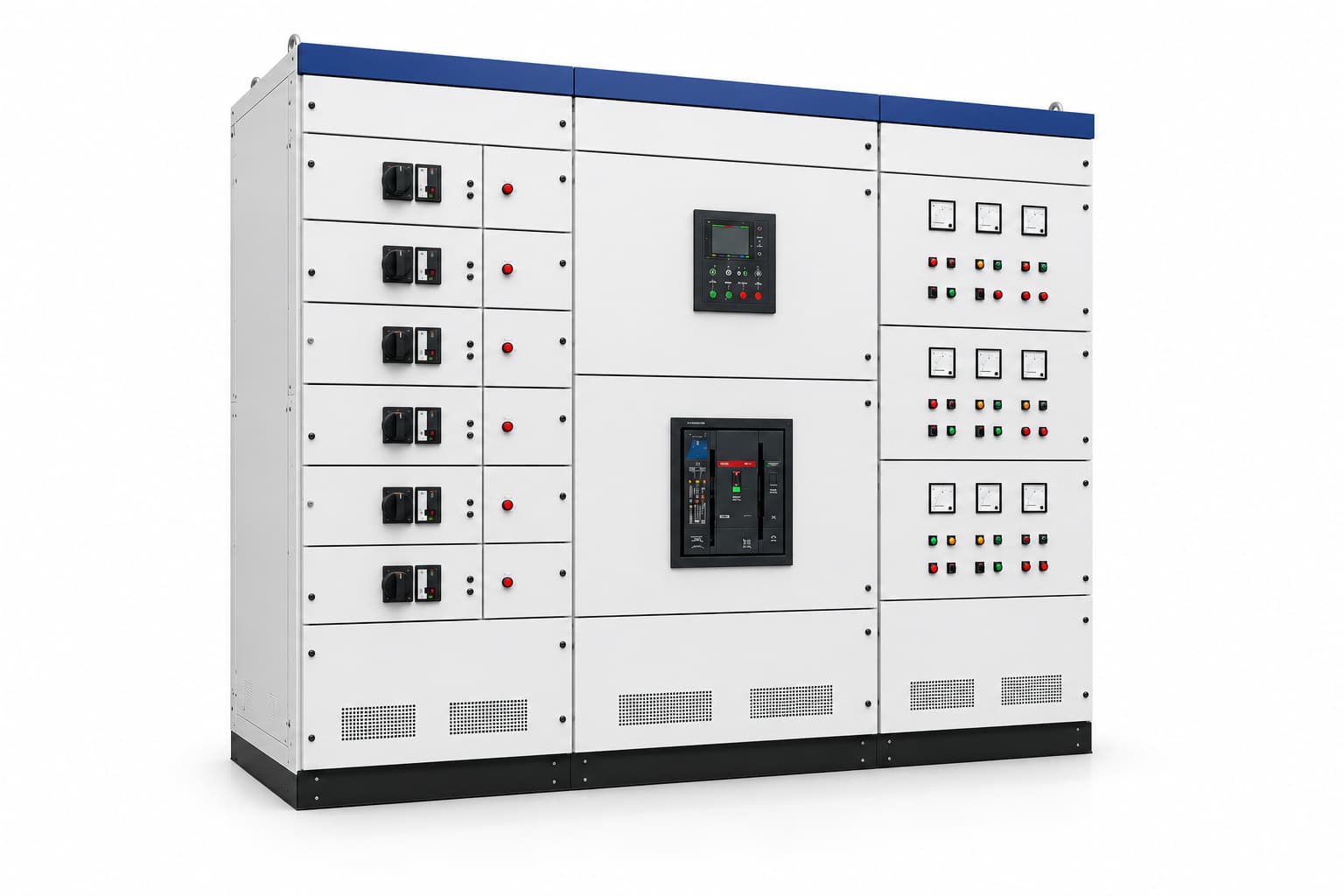

GCS Low Voltage Withdrawable Switchgear
Why choose ZY POWER for this project
Withdrawable distribution and MCC solution
GCS is suitable for projects that need modular LV feeders, motor-control units and practical maintenance access in one cabinet system.
Balanced cost and function
It is commonly selected when the buyer wants drawout functionality without moving to the highest-cost LV switchgear configuration.
Flexible feeder combination
Incoming, bus tie, outgoing feeder, motor-control, capacitor and metering sections can be arranged according to the electrical scheme.
Project-specific component package
Breakers, contactors, relays, meters and communication devices can be configured to meet local tender and budget requirements.
GCS type low voltage withdrawable switchgear, rated main busbar 2500A, short-time withstand 50kA/1s. Drawer-type modular design for quick maintenance and flexible circuit configuration. Fully insulated busbar. IEC 61439-1/2 certified.
- Rated Voltage
- 0.4-40.5 kV project configuration
- Rated Current
- 630-4000 A project configuration
- Frequency
- 50Hz / 60Hz
- Standard
- IEC 61439 low-voltage switchgear assembly reference standard
- Application
- Industrial Plants, Manufacturing, Commercial Buildings, Infrastructure
- Protection Level
- IP30-IP54 project configuration
- Installation Type
- Indoor floor-standing panel installation
Factory and delivery evidence
Evidence buyers can verify
Review the published factory media now. Order-specific drawings, test records, packing photos, and certificates are supplied only for the confirmed project scope.
Testing information
Published site mediaRoutine test scope is confirmed against the applicable standard and approved specification.
- Routine test record by serial number
- FAT scope agreed before inspection
Evidence source: Published site media
Packing and shipment
Published site mediaExport preparation is coordinated after dimensions, route, and delivery terms are confirmed.
- Packing method matched to transport conditions
- Loading record can be retained for the order
Evidence source: Published site media
Project document package
Project scope requiredDocuments are issued for the confirmed order instead of reused as generic proof.
- Approved datasheet and drawings
- Test record, packing list, and nameplate data
Evidence source: Project scope required
Images show published manufacturing, testing, and loading scenes. Final product appearance and project documents depend on the approved technical configuration.
Request evidence packageGCS low-voltage withdrawable switchgear is a modular LV distribution and motor-control solution used in power plants, industrial facilities, buildings and process systems. It provides drawout feeders, flexible cabinet combinations and practical maintainability for projects that need reliable LV distribution with balanced cost and function.
What Buyers Should Confirm
- Main busbar current, short-circuit level, incoming breaker and bus tie requirement.
- Outgoing feeder list, motor feeder list, VFD or soft-starter requirements.
- Component brand preference, metering, communication and control voltage.
- Panel arrangement, cable entry, spare units and export documentation.
