DW45 Series

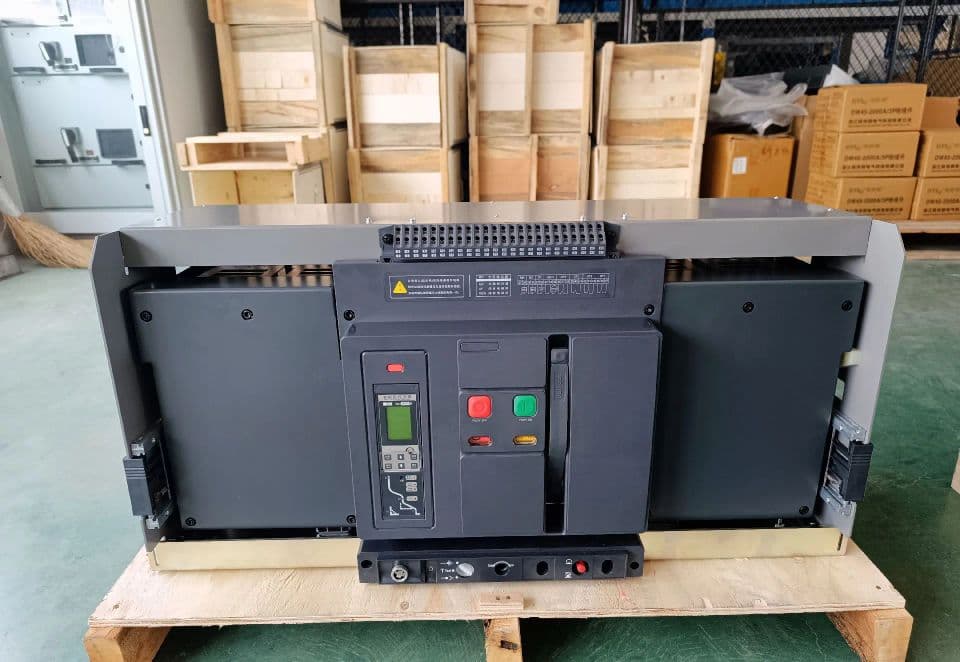

DW45 Intelligent Air Circuit Breaker (ACB)
Why choose ZY POWER for this project
Main LV protection device
DW45 is suitable for high-current incoming and bus-coupler circuits where reliable tripping and maintainable panel integration are required.
Fixed or drawout installation
The breaker can be configured for fixed mounting or drawout cradle installation according to the switchboard maintenance concept.
Trip unit options by project
Protection functions, metering, alarms, auxiliary contacts and communication options can be selected according to the electrical scheme.
LV switchboard integration
Busbar interface, cabinet depth, operating handle and interlocking should be coordinated with GGD, GCS, GCK or MNS panel design.
DW45 series intelligent air circuit breaker (ACB) rated 630A, 3P, 400/690V AC, breaking capacity 65kA. Microprocessor-based trip unit with LCD display, LSIG-N protection, Modbus communication optional. Draw-out and fixed mounting available. IEC 60947-2 certified for main distribution protection.
- Rated Voltage
- 12-40.5 kV project configuration
- Rated Current
- 630-4000 A project configuration
- Frequency
- 50Hz / 60Hz
- Standard
- IEC 60947 for low-voltage circuit breaker applications
- Application
- LV Main Incomers, Industrial Plants, Commercial Buildings, Generator Panels
- Protection Level
- Indoor panel-mounted mechanism, enclosure by cabinet design
- Installation Type
- Indoor fixed or withdrawable installation
Factory and delivery evidence
Evidence buyers can verify
Review the published factory media now. Order-specific drawings, test records, packing photos, and certificates are supplied only for the confirmed project scope.

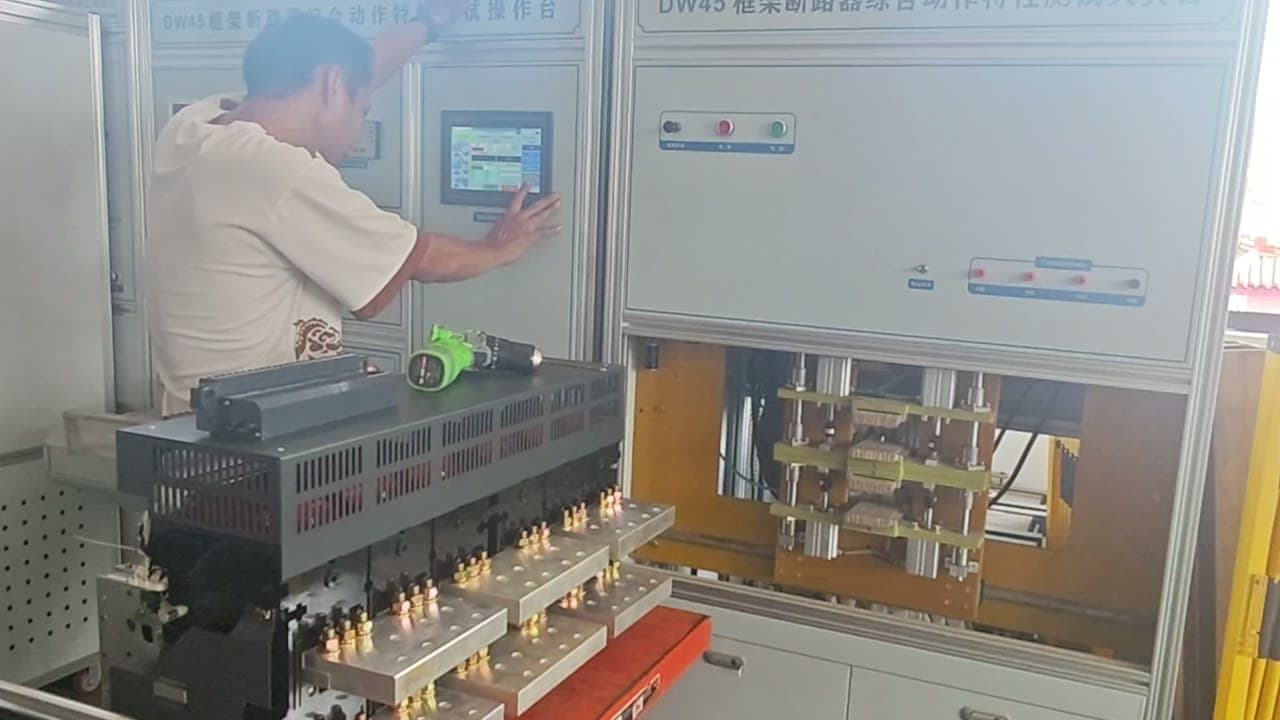

Testing information
Published site mediaRoutine test scope is confirmed against the applicable standard and approved specification.
- Routine test record by serial number
- FAT scope agreed before inspection
Evidence source: Published site media
Packing and shipment
Published site mediaExport preparation is coordinated after dimensions, route, and delivery terms are confirmed.
- Packing method matched to transport conditions
- Loading record can be retained for the order
Evidence source: Published site media
Project document package
Project scope requiredDocuments are issued for the confirmed order instead of reused as generic proof.
- Approved datasheet and drawings
- Test record, packing list, and nameplate data
Evidence source: Project scope required
Images show published manufacturing, testing, and loading scenes. Final product appearance and project documents depend on the approved technical configuration.
Request evidence packageDW45 air circuit breaker is used as the main incoming, bus coupler or high-current feeder protection device in low-voltage switchboards. It is usually selected for transformer secondary distribution, industrial LV rooms, commercial buildings and generator or utility incomer panels. Procurement should confirm frame size, rated current, breaking capacity, pole number, fixed or drawout type, trip unit functions, control voltage and communication requirements.
What Buyers Should Confirm
- Rated current, frame size, breaking capacity, pole number and installation type.
- Trip unit functions, control voltage, auxiliary contacts and communication requirement.
- Switchboard type, busbar connection direction, cabinet layout and interlocking requirement.
- Routine test scope, wiring diagram, packing method and spare accessory list.
