Medium Voltage Switchgear

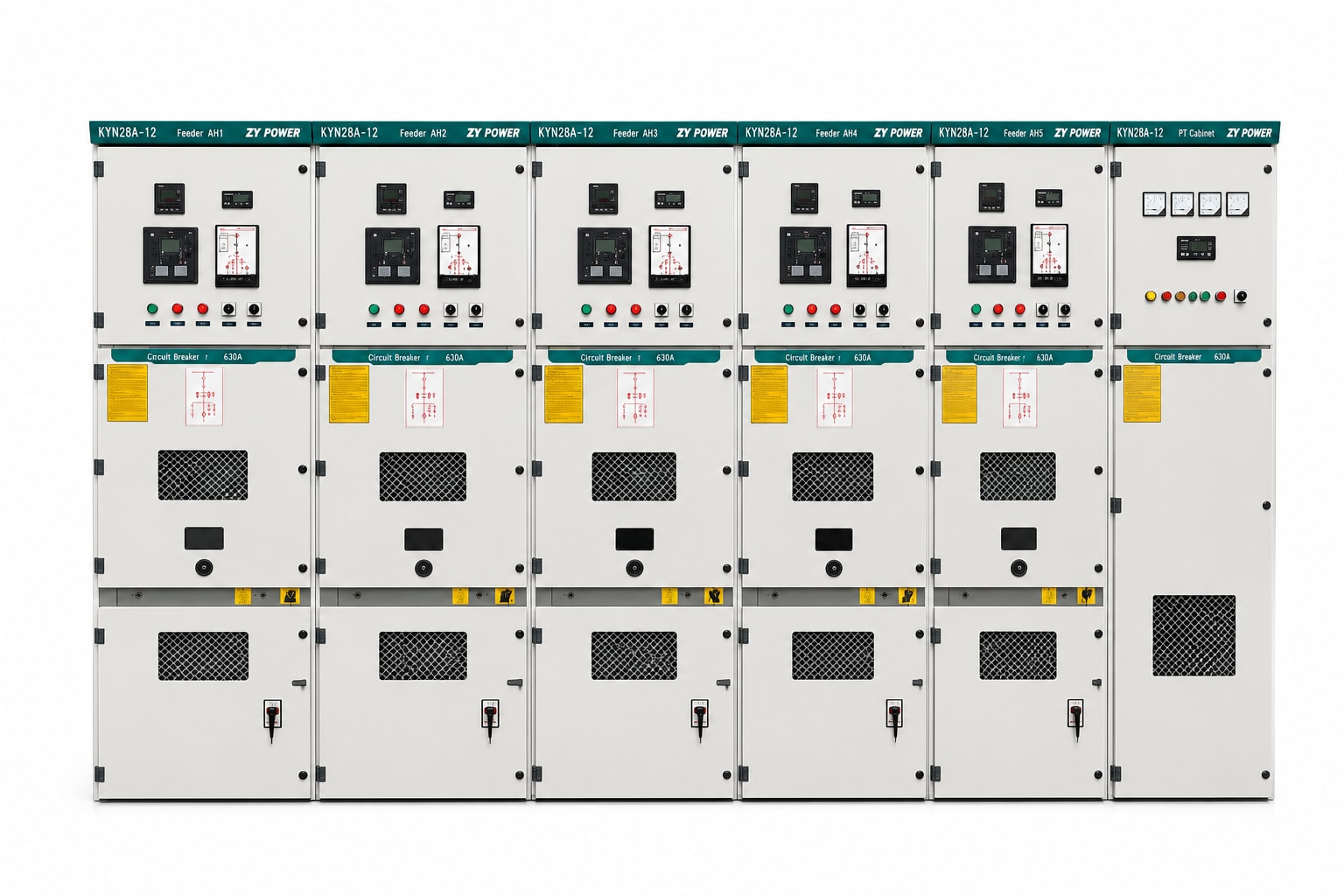

KYN28-12 Metal-Clad HV Switchgear 630A 25kA
Model: KYN28A-12/630-25
KYN28A-12 indoor AC metal-clad withdrawable switchgear, rated 12kV 630A 25kA. Five-prevention interlocking. Modular metalclad design with independent compartments. IEC 62271-200 / GB 3906 compliant.
Technical Data
| Rated Voltage | 12 kV |
|---|---|
| Rated Current | 630 A |
| Short-Circuit Breaking Current | 25 kA |
| Circuit Breaker Type | Vacuum (VS1/ZN63A) |
| Protection Level | IP4X (enclosure), IP2X (compartments) |
| Standard | IEC 62271-200, GB 3906 |
Product Features
Metal-clad with earthed metal partitions
Withdrawable vacuum circuit breaker truck (VS1)
Five-prevention mechanical/electrical interlocking
Independent LV relay compartment
Top/bottom cable entry options
Compact 800mm-wide panel design
