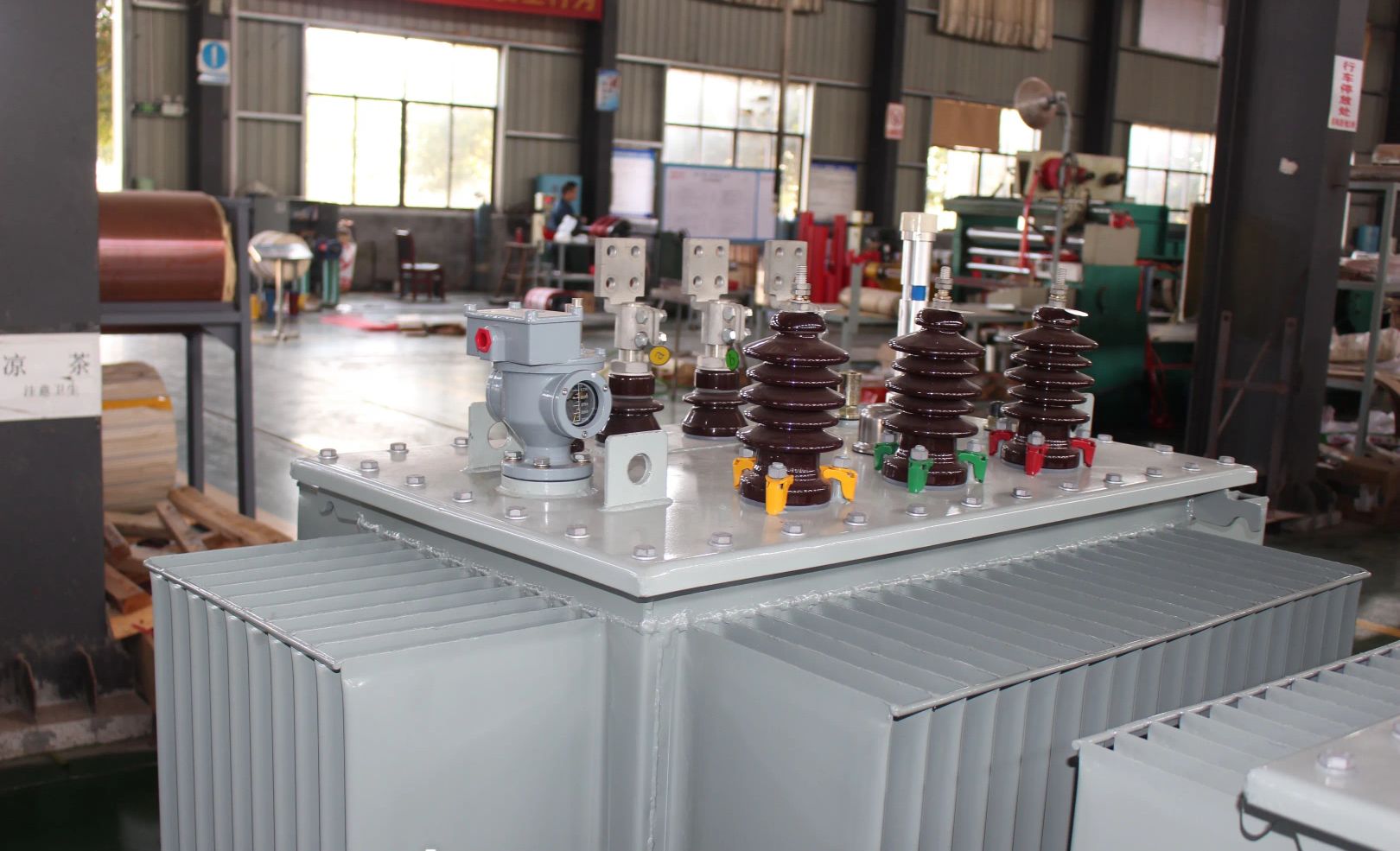

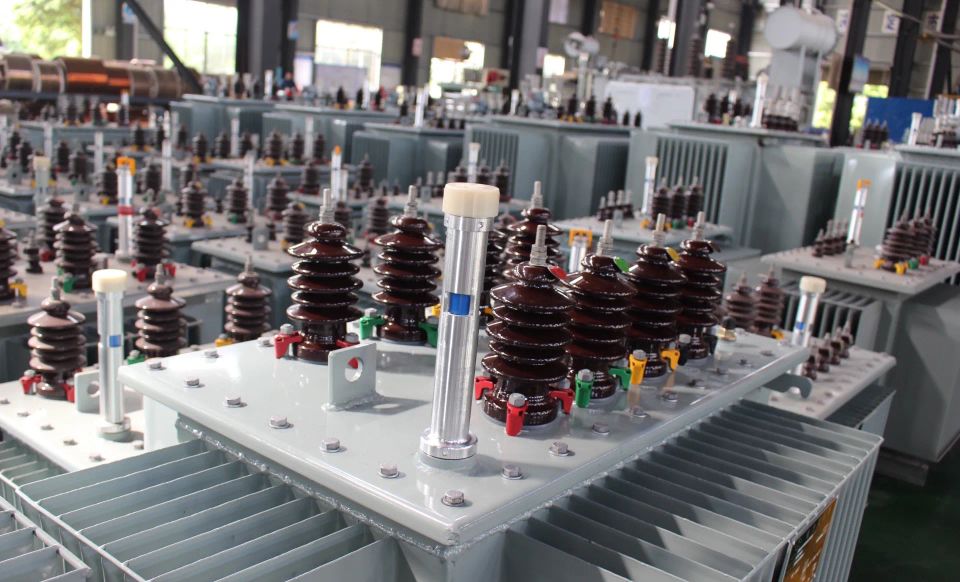

S22 Ultra-Low Loss Oil-Immersed Transformer 500kVA
型号：S22-500/10
S series three-phase oil-immersed distribution transformer with hermetically sealed corrugated tank. Rated 500kVA, primary 10kV, secondary 0.4kV. Features amorphous alloy core for ultra-low no-load loss, exceeding GB Class 2 efficiency. Compliant with IEC 60076 and GB 1094 standards. Outdoor installation for utility networks, rural electrification and industrial distribution.
参考价格
Inquire
供货状态
现货供应
品质认证
IEC / ISO 9001
交货周期
7-15 工作日
技术规格
| Rated Capacity | 500kVA |
| Primary Voltage | 10 kV (6/6.3/10/11kV optional) |
| Secondary Voltage | 0.4 kV |
| Frequency | 50/60 Hz |
| Vector Group | Dyn11 / Yyn0 |
| Cooling | ONAN |
| Tank Type | Hermetically Sealed Corrugated |
| Standards | IEC 60076, GB 1094 |
核心优势
- Hermetically sealed design prevents oil contamination
- Corrugated tank for efficient natural cooling
- Off-circuit tap changer ±5% or ±2×2.5%

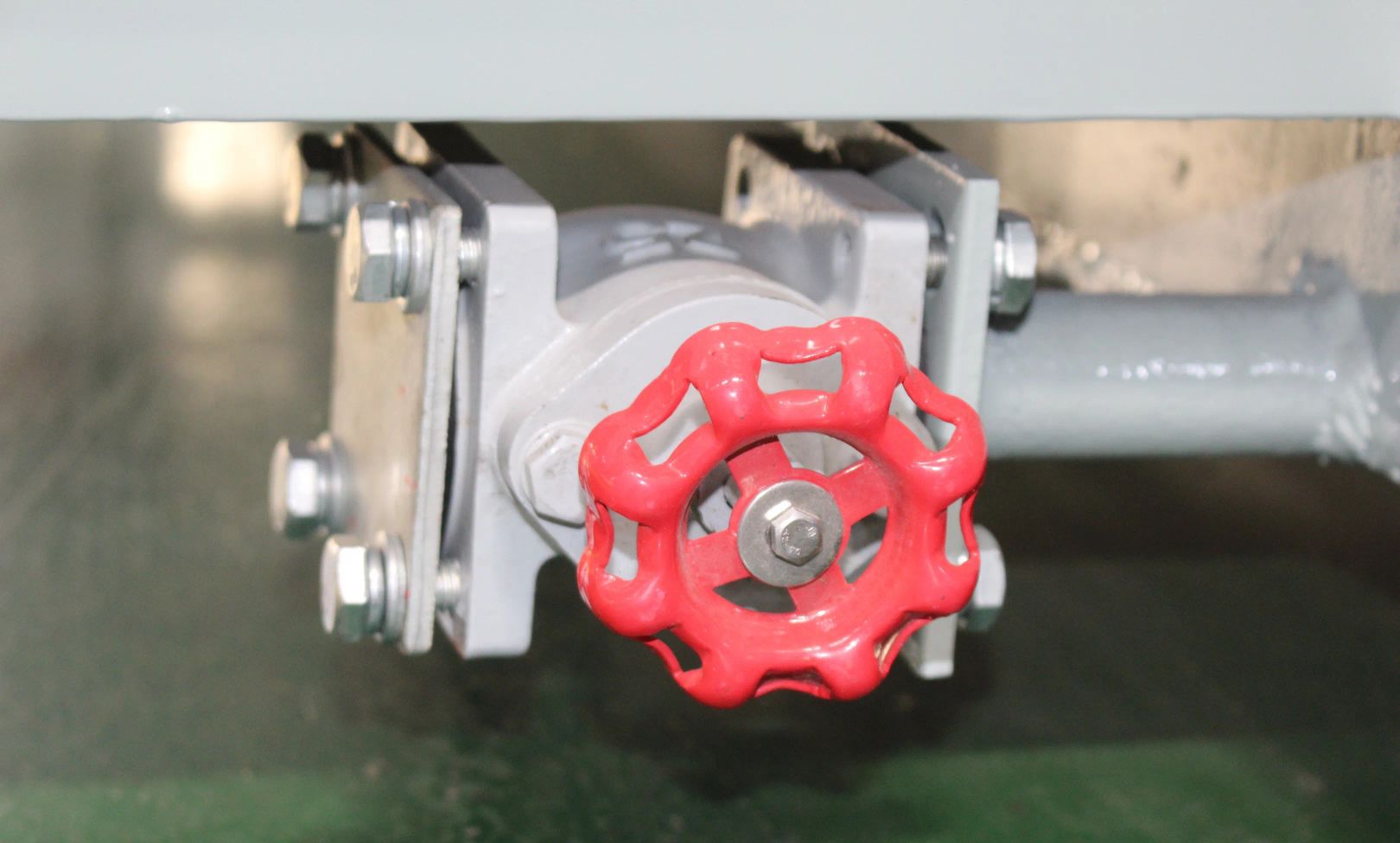

- Oil level gauge, drain valve and pressure relief device

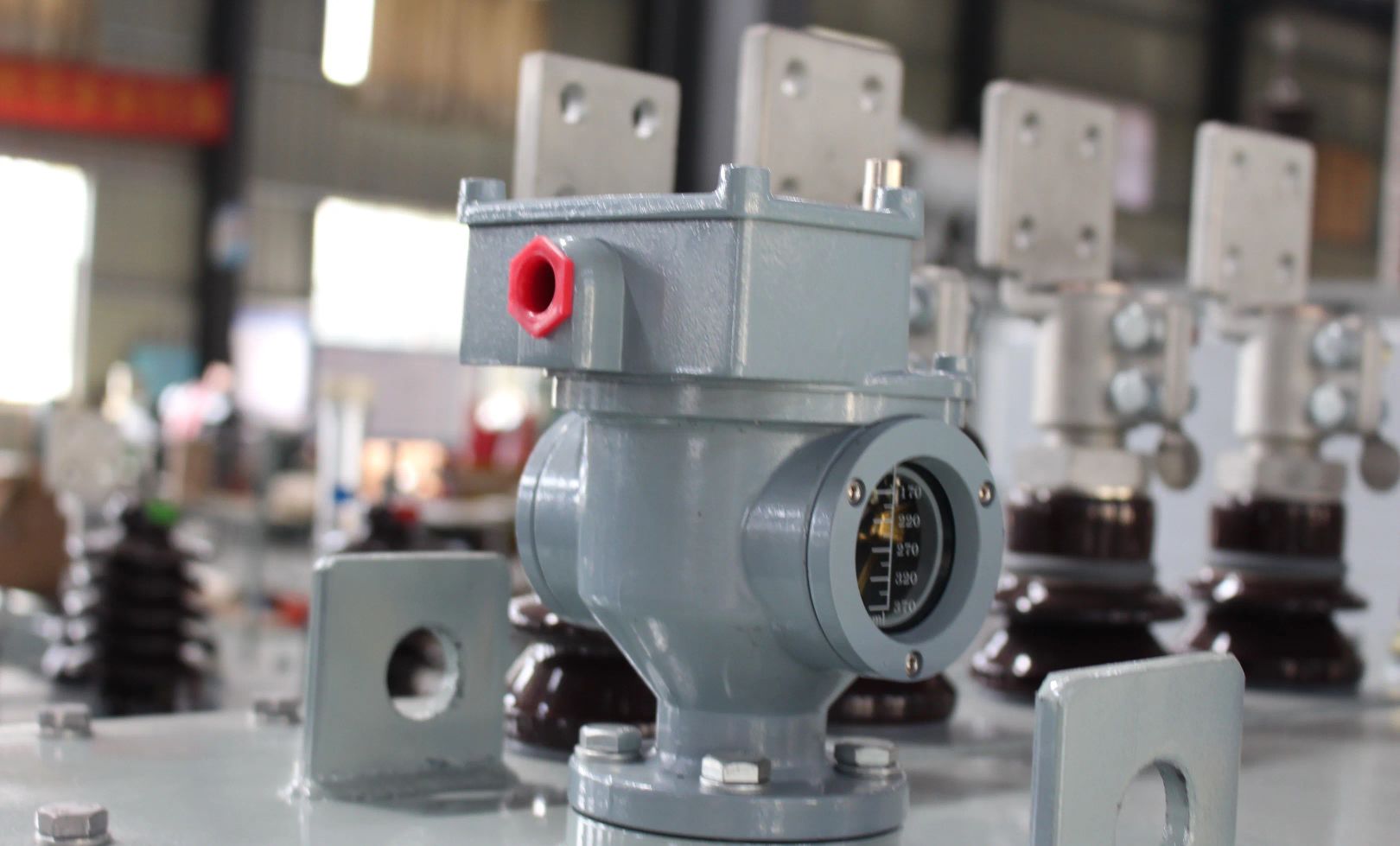

- Buchholz relay and thermometer pocket
- Outdoor rated, low maintenance
